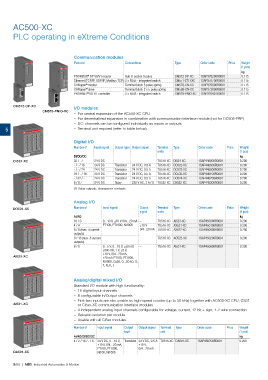

Page 90 - index

AC500-XC

PLC operating in eXtreme Conditions

Communication modules
Protocol Connections Type Order code Price Weight
(1 pce)
kg
PROFIBUS DP V0/V1 master Sub-D socket 9 poles CM572-DP-XC 1SAP370200R0001 0.115
®
Ethernet (TCP/IP, UDP/IP, Modbus TCP) 2 x RJ45 - integrated switch CM577-ETH-XC 1SAP370700R0001 0.115
CANopen master Terminal block 5 poles spring CM578-CN-XC 1SAP370800R0001 0.115
®
CANopen slave Terminal block 2 x 5 poles spring CM588-CN-XC 1SAP372800R0001 0.115
®
PROFINET I/O RT controller 2 x RJ45 - integrated switch CM579-PNIO-XC 1SAP370901R0001 0.115
®
CM572-DP-XC I/O modules
CM579-PNIO-XC
– For central expansion of the AC500-XC CPU
– For decentralized expansion in combination with communication interface module (not for DC505-FBP)
– DC: channels can be confgured individually as inputs or outputs
5 – Terminal unit required (refer to table below).

Digital I/O
Number of Input signal Output type Output signal Terminal Type Order code Price Weight
units (1 pce)
DI/DO/DC kg
DI524-XC 32 / - / - 24 V DC - - TU516-XC DI524-XC 1SAP440000R0001 0.200
- / - / 16 24 V DC Transistor 24 V DC, 0.5 A TU516-XC DC522-XC 1SAP440600R0001 0.200
- / - / 24 24 V DC Transistor 24 V DC, 0.5 A TU516-XC DC523-XC 1SAP440500R0001 0.200
16 / - / 16 24 V DC Transistor 24 V DC, 0.5 A TU516-XC DC532-XC 1SAP440100R0001 0.200
- / 32 / - 24 V DC Transistor 24 V DC, 0.5 A TU516-XC DO524-XC 1SAP440700R0001 0.200
8 / 8 / - 24 V DC Relay 230 V AC, 3 A (1) TU532-XC DX522-XC 1SAP445200R0001 0.200
(1) Relay outputs, changeover contacts.

Analog I/O
DO524-XC Number of Input signal Output Terminal Type Order code Price Weight
signal units (1 pce)
AI/AO kg
16 / 0 0…10 V, ±10 V 0/4…20 mA – TU516-XC AI523-XC 1SAP450300R0001 0.200
4 / 4 PT100, PT1000, Ni1000 ±10 V TU516-XC AX521-XC 1SAP450100R0001 0.200
8 / 8 (max. 4 current 0/4...20 mA TU516-XC AX522-XC 1SAP450000R0001 0.200
outputs)
0 / 16 (max. 8 current – TU516-XC AO523-XC 1SAP450200R0001 0.200
outputs)
8 / 0 0…5 V, 0…10 V, ±50 mV, – TU516-XC AI531-XC 1SAP450600R0001 0.200
±500 mV, 1 V, ±5 V,
±10 V, 0/4…20 mA,
AI523-XC ±20 mA PT100, PT1000,
Ni1000, Cu50, 0…50 kO, S,
T, N, K, J

Analog/digital mixed I/O
Standard I/O module with high functionality:
– 16 digital input channels
– 8 confgurable In/Output channels
– First two inputs are also usable as high-speed counter (up to 50 kHz) together with AC500-XC CPU, CS31
AI531-XC or CI5xx-XC communication interface modules
– 4 independent analog input channels confgurable for voltage, current, 12 bit + sign, 1-2 wire connection
– Galvanic isolation per module
– Usable with all CI5xx modules.
Number of Input signal Output Output signal Terminal Type Order code Price Weight
type unit (1 pce)
AI/AO/DI/DO/DC kg
4 / 2 / 16 / - / 8 24 V DC, 0…10 V, Transistor 24 V DC, 0.5 A TU516-XC DA501-XC 1SAP450700R0001 0.200
±10 V, 0/4…20 mA, ±10 V,
PT100, PT1000, 0/4…20 mA
DA501-XC Ni100, Ni1000
