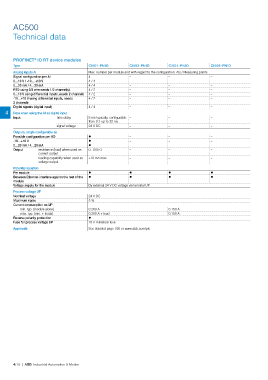

AC500

Technical data

PROFINET IO RT device modules
®
Type CI501-PNIO CI502-PNIO CI504-PNIO CI506-PNIO
Analog inputs AI Max. number per module and with regard to the configuration: AIs / Measuring points
Signal confguration per AI 4 – – –
0…10 V / -10… +10 V 4 / 4 – – –
0…20 mA / 4…20 mA 4 / 4 – – –
RTD using 2/3 wire needs 1/2 channel(s) 4 / 2 – – –
0…10 V using differential inputs, needs 2 channels 4 / 2 – – –
-10…+10 V using differential inputs, needs 4 / 2 – – –
2 channels
Digital signals (digital input) 4 / 4 – – –
4 Data when using the AI as digital input
Input time delay 8 ms typically, configurable – – –
from 0.1 up to 32 ms
signal voltage 24 V DC – – –
Outputs, single confgurable as
Possible confguration per AO ? – – –
-10…+10 V ? – – –
0…20 mA / 4…20 mA ? – – –
Output resistance (load) when used as 0...500 O – – –
current output
loading capability when used as ±10 mA max. – – –
voltage output
Potential isolation
Per module ? ? ? ?
Between Ethernet interface against the rest of the ? ? ? ?
module
Voltage supply for the module By external 24 V DC voltage via terminal UP
Process voltage UP
Nominal voltage 24 V DC
Maximum ripple 5 %
Current consumption on UP
min. typ. (module alone) 0.260 A 0.150 A
max. typ. (min. + loads) 0.260 A + load 0.150 A
Reverse polarity protection ?
Fuse for process voltage UP 10 A miniature fuse
Approvals See detailed page 166 or www.abb.com/plc
