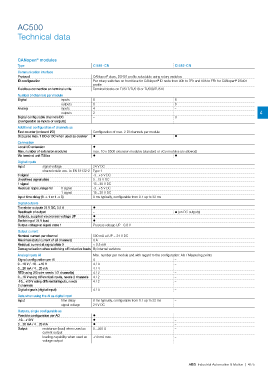

AC500

Technical data

CANopen modules
®
Type CI581-CN CI582-CN
Communication interface
®
Protocol CANopen slave, DS401 profile selectable using rotary switches
®
®
ID confguration Per rotary switches on front face for CANopen ID node from 00h to 7Fh and 80h to FFh for CANopen DS401
profile
Field bus connection on terminal units Terminal blocks on TU517/TU518 or TU509/TU510
Number of channels per module
Digital inputs 8 8
outputs 8 8
Analog inputs 4 –
outputs 2 – 4
Digital confgurable channels DC – 8
(confgurable as inputs or outputs)
Additional confguration of channels as
Fast counter (onboard I/O) Configuration of max. 2 DI channels per module
Occupies max. 1 DO or DC when used as counter ? ?
Connection
Local I/O extension ?
Max. number of extension modules max. 10 x S500 extension modules (standard or eCo modules are allowed)
Via terminal unit TU5xx ? ?
Digital inputs
Input signal voltage 24 V DC
characteristic acc. to EN 61132-2 Type 1
0 signal -3...+5 V DC
Undefned signal state 5...15 V DC
1 signal 15...30 V DC
Residual ripple, range for 0 signal -3...+5 V DC
1 signal 15...30 V DC
Input time delay (0 -> 1 or 1 -> 0) 8 ms typically, configurable from 0.1 up to 32 ms
Digital outputs
Transistor outputs 24 V DC, 0.5 A ?
Readback of output – ? (on DC outputs)
Outputs, supplied via process voltage UP ?
Switching of 24 V load ?
Output voltage at signal state 1 Process voltage UP - 0.8 V
Output current
Nominal current per channel 500 mA at UP = 24 V DC
Maximum (total current of all channels) 8 A
Residual current at signal state 0 < 0.5 mA
Demagnetization when switching off inductive loads By internal varistors
Analog Inputs AI Max. number per module and with regard to the configuration: AIs / Measuring points
Signal confguration per AI 4 –
0…10 V / -10…+10 V 4 / 4 –
0…20 mA / 4…20 mA 4 / 4 –
RTD using 2/3 wire needs 1/2 channel(s) 4 / 2 –
0…10 V using differential inputs, needs 2 channels 4 / 2 –
-10…+10 V using differential inputs, needs 4 / 2 –
2 channels
Digital signals (digital input) 4 / 4 –
Data when using the AI as digital input
Input time delay 8 ms typically, configurable from 0.1 up to 32 ms –
signal voltage 24 V DC –
Outputs, single confgurable as
Possible confguration per AO ? –
-10…+10 V ? –
0…20 mA / 4…20 mA ? –
Output resistance (load) when used as 0...500 O –
current output
loading capability when used as ±10 mA max. –
voltage output
