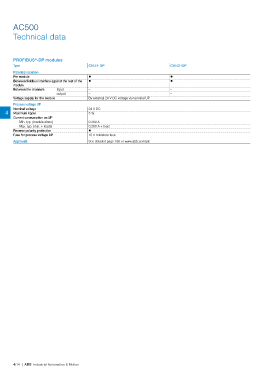

AC500

Technical data

PROFIBUS -DP modules
®
Type CI541-DP CI542-DP
Potential isolation
Per module ? ?
Between feldbus interface against the rest of the ? ?
module
Between the channels input – –
output – –
Voltage supply for the module By external 24 V DC voltage via terminal UP
Process voltage UP
Nominal voltage 24 V DC
4 Maximum ripple 5 %
Current consumption on UP
Min. typ. (module alone) 0.260 A
Max. typ. (min. + loads) 0.260 A + load
Reverse polarity protection ?
Fuse for process voltage UP 10 A miniature fuse
Approvals See detailed page 166 or www.abb.com/plc

4/74 | ABB Industrial Automation & Motion
