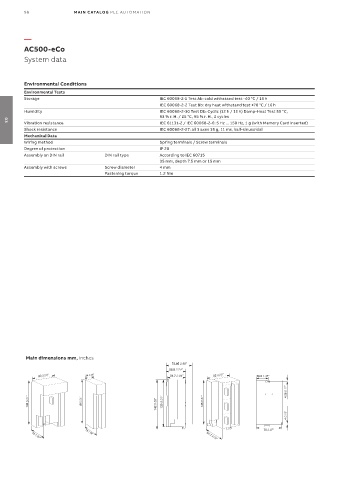

AC500-eCo
System data

Environmental Conditions
Environmental Tests
Storage IEC 60068-2-1 Test Ab: cold withstand test -40 °C / 16 h
IEC 60068-2-2 Test Bb: dry heat withstand test +70 °C / 16 h
Humidity IEC 60068-2-30 Test Db: Cyclic (12 h / 12 h) Damp-Heat Test 55 °C,
93 % r. H. / 25 °C, 95 % r. H., 2 cycles
Vibration resistance IEC 61131-2 / IEC 60068-2-6: 5 Hz ... 150 Hz, 1 g (with Memory Card inserted)
03
Shock resistance IEC 60068-2-27: all 3 axes 15 g, 11 ms, half-sinusoidal
Mechanical Data
Wiring method Spring terminals / Screw terminals
Degree of protection IP 20
Assembly on DIN rail DIN rail type According to IEC 60715
35 mm, depth 7.5 mm or 15 mm
Assembly with screws Screw diameter 4 mm
Fastening torque 1.2 Nm

Main dimensions mm, inches
73.05 2.88”
56.8 2.24”
82 3.23” 34 1.34” 51.7 2.04” 82 3.23” 36.8 1.45”
4.25 0.17”

135 5.31” 135 5.31” 142 5.59” 135 5.31” 135 5.31”

4 0.16”

78 3.07”
75 2.96”
75 2.96”
51.7 2.04”
