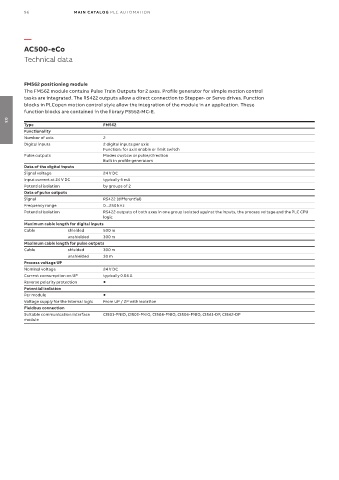

AC500-eCo
Technical data

FM562 positioning module
The FM562 module contains Pulse Train Outputs for 2 axes. Profile generator for simple motion control
tasks are integrated. The RS422 outputs allow a direct connection to Stepper- or Servo drives. Function
blocks in PLCopen motion control style allow the integration of the module in an application. These
function blocks are contained in the library PS552-MC-E.

Type FM562
03
Functionality
Number of axis 2
Digital inputs 2 digital inputs per axis
Function: for axis enable or limit switch
Pulse outputs Modes cw/ccw or pulse/direction
Built in profile generators
Data of the digital inputs
Signal voltage 24 V DC
Input current at 24 V DC typically 5 mA
Potential isolation by groups of 2
Data of pulse outputs
Signal RS422 (differential)
Frequency range 0...250 kHz
Potential isolation RS422 outputs of both axes in one group isolated against the inputs, the process voltage and the PLC CPU
logic
Maximum cable length for digital inputs
Cable shielded 500 m
unshielded 300 m
Maximum cable length for pulse outputs
Cable shielded 300 m
unshielded 30 m
Process voltage UP
Nominal voltage 24 V DC
Current consumption on UP typically 0.04 A
Reverse polarity protection 
Potential isolation
Per module 
Voltage supply for the internal logic From UP / ZP with isolation
Fieldbus connection
Suitable communication interface CI501-PNIO, CI502-PNIO, CI504-PNIO, CI506-PNIO, CI541-DP, CI542-DP
module
