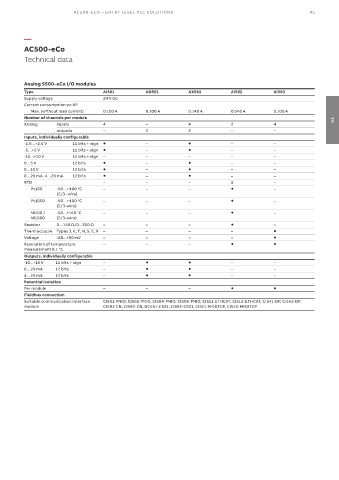

AC500 -ECO – ENTRY LEVEL PLC SOLUTIONS 95

—
AC500-eCo
Technical data

Analog S500-eCo I/O modules
Type AI561 AO561 AX561 AI562 AI563
Supply voltage 24 V DC
Current consumption on UP
Max. (without load current) 0.100 A 0.100 A 0.140 A 0.040 A 0.100 A
Number of channels per module 03
Analog inputs 4 – 4 2 4
outputs – 2 2 – –
Inputs, individually configurable
-2.5…+2.5 V 11 bits + sign  –  – –
-5…+5 V 11 bits + sign  –  – –
-10…+10 V 11 bits + sign – – – – –
0…5 V 12 bits  –  – –
0…10 V 12 bits  –  – –
0…20 mA, 4…20 mA 12 bits  –  – –
RTD – – – 2 –
Pt100 -50…+400 °C – – –  –
(2/3- wire)
Pt1000 -50…+400 °C – – –  –
(2/3-wire)
Ni100 / -50…+150 °C – – –  –
Ni1000 (2/3-wire)
Resistor 0…150 Ω/0...300 Ω – – –  –
Thermocouple Types J, K, T, N, S, E, R – – – – 
Voltage -80...+80 mV – – – – 
Resolution of temperature – – –  
measurement 0.1 °C
Outputs, individually configurable
-10...+10 V 11 bits + sign –   – –
0…20 mA 12 bits –   – –
4…20 mA 12 bits –   – –
Potential isolation
Per module – – –  
Fieldbus connection
Suitable communication interface CI501-PNIO, CI502-PNIO, CI504-PNIO, CI506-PNIO, CI511-ETHCAT, CI512-ETHCAT, CI541-DP, CI542-DP,
module CI581-CN, CI582-CN, DC551-CS31, CI592-CS31, CI521-MODTCP, CI522-MODTCP
