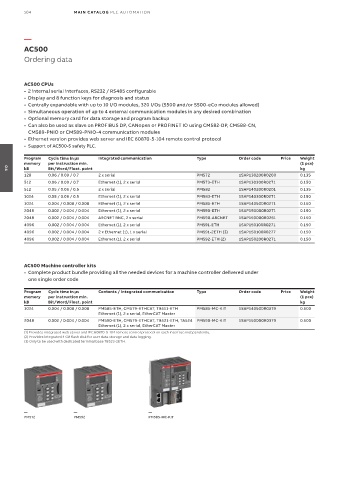

104              MAIN CATALOG PLC AUTOMATION




          —
          AC500
          Ordering data




          AC500 CPUs
          •  2 internal serial interfaces, RS232 / RS485 configurable
          •   Display and 8 function keys for diagnosis and status
          •  Centrally expandable with up to 10 I/O modules, 320 I/Os (S500 and/or S500-eCo modules allowed)
          •   Simultaneous operation of up to 4 external communication modules in any desired combination
          •   Optional memory card for data storage and program backup
          •   Can also be used as slave on PROFIBUS DP, CANopen or PROFINET IO using CM582-DP, CM588-CN,
           CM589-PNIO or CM589-PNIO-4 communication modules
          •  Ethernet version provides web server and IEC 60870-5-104 remote control protocol
          •  Support of AC500-S safety PLC.

          Program   Cycle time in µs    Integrated communication      Type           Order code     Price  Weight
          memory  per instruction min.                                                                    (1 pce)
          kB      Bit/Word/Float. point                                                                   kg
   04
          128     0.06 / 0.09 / 0.7  2 x serial                       PM572          1SAP130200R0200      0.135
          512     0.06 / 0.09 / 0.7  Ethernet (1), 2 x serial         PM573-ETH      1SAP130300R0271      0.150
          512     0.05 / 0.06 / 0.5  2 x serial                       PM582          1SAP140200R0201      0.135
          1024    0.05 / 0.06 / 0.5  Ethernet (1), 2 x serial         PM583-ETH      1SAP140300R0271      0.150
          1024    0.004 / 0.008 / 0.008  Ethernet (1), 2 x serial     PM585-ETH      1SAP140500R0271      0.150
          2048    0.002 / 0.004 / 0.004  Ethernet (1), 2 x serial     PM590-ETH      1SAP150000R0271      0.150
          2048    0.002 / 0.004 / 0.004  ARCNET BNC, 2 x serial       PM590-ARCNET   1SAP150000R0261      0.150
          4096    0.002 / 0.004 / 0.004  Ethernet (1), 2 x serial     PM591-ETH      1SAP150100R0271      0.150
          4096    0.002 / 0.004 / 0.004  2 x Ethernet (1), 1 x serial  PM591-2ETH (3)  1SAP150100R0277    0.150
          4096    0.002 / 0.004 / 0.004  Ethernet (1), 2 x serial     PM592-ETH (2)  1SAP150200R0271      0.150




          AC500 Machine controller kits
          •  Complete product bundle providing all the needed devices for a machine controller delivered under
           one single order code

          Program   Cycle time in µs    Contents / Integrated communication  Type    Order code     Price  Weight
          memory  per instruction min.                                                                    (1 pce)
          kB      Bit/Word/Float. point                                                                   kg
          1024    0.004 / 0.008 / 0.008  PM585-ETH, CM579-ETHCAT, TB511-ETH   PM585-MC-KIT  1SAP140500R0379  0.500
                                    Ethernet (1), 2 x serial, EtherCAT Master
          2048    0.002 / 0.004 / 0.004  PM590-ETH, CM579-ETHCAT, TB521-ETH, TA524  PM590-MC-KIT   1SAP150000R0379  0.500
                                    Ethernet (1), 2 x serial, EtherCAT Master
          (1) Provides integrated web server and IEC 60870-5-104 remote control protocol on each interface independently.
          (2) Provides integrated 4 GB flash disk for user data storage and data logging.
          (3) Only to be used with dedicated terminal base TB523-2ETH.














          —                —                         —
          PM572            PM592                     PM585-MC-KIT
