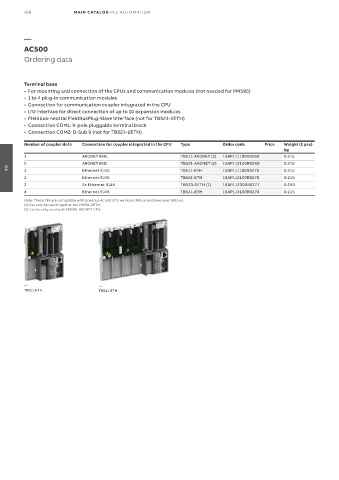

106 MAIN CATALOG PLC AUTOMATION

—
AC500
Ordering data

Terminal base
• For mounting and connection of the CPUs and communication modules (not needed for PM595)
• 1 to 4 plug-in communication modules
• Connection for communication coupler integrated in the CPU
• I/O interface for direct connection of up to 10 expansion modules
• Fieldbus-neutral FieldBusPlug-Slave interface (not for TB523-2ETH)
• Connection COM1: 9-pole pluggable terminal block
• Connection COM2: D-Sub 9 (not for TB523-2ETH).

Number of coupler slots Connection for coupler integrated in the CPU Type Order code Price Weight (1 pce)
kg
1 ARCNET BNC TB511-ARCNET (2) 1SAP111100R0260 0.215
2 ARCNET BNC TB521-ARCNET (2) 1SAP112100R0260 0.215
1 Ethernet RJ45 TB511-ETH 1SAP111100R0270 0.215
04
2 Ethernet RJ45 TB521-ETH 1SAP112100R0270 0.215
2 2x Ethernet RJ45 TB523-2ETH (1) 1SAP112300R0277 0.250
4 Ethernet RJ45 TB541-ETH 1SAP114100R0270 0.215
Note: These TBs are compatible with previous AC500 CPU versions (R01xx) and new ones (R02xx).
(1) Can only be used together the PM591-2ETH.
(2) Can be only used with PM590-ARCNET CPU.

— —
TB511-ETH TB541-ETH
