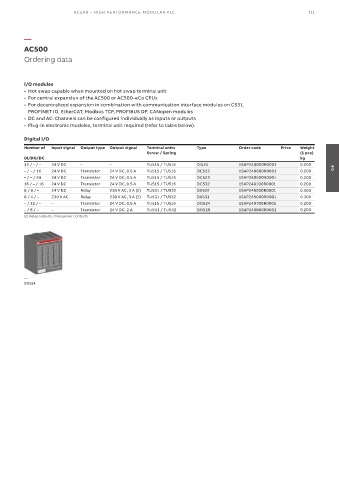

AC500 – HIGH PERFORMANCE MODUL AR PLC 111

—
AC500
Ordering data

I/O modules
• Hot swap capable when mounted on hot swap terminal unit
• For central expansion of the AC500 or AC500-eCo CPUs
• For decentralized expansion in combination with communication interface modules on CS31,
PROFINET IO, EtherCAT, Modbus TCP, PROFIBUS DP, CANopen modules
• DC and AC: Channels can be configured individually as inputs or outputs
• Plug-in electronic modules, terminal unit required (refer to table below).

Digital I/O
Number of Input signal Output type Output signal Terminal units Type Order code Price Weight
Screw / Spring (1 pce)
DI/DO/DC kg
32 / – / – 24 V DC – – TU515 / TU516 DI524 1SAP240000R0001 0.200
– / – / 16 24 V DC Transistor 24 V DC, 0.5 A TU515 / TU516 DC522 1SAP240600R0001 0.200 04
– / – / 24 24 V DC Transistor 24 V DC, 0.5 A TU515 / TU516 DC523 1SAP240500R0001 0.200
16 / – / 16 24 V DC Transistor 24 V DC, 0.5 A TU515 / TU516 DC532 1SAP240100R0001 0.200
8 / 8 / – 24 V DC Relay 230 V AC, 3 A (2) TU531 / TU532 DX522 1SAP245200R0001 0.300
8 / 4 / – 230 V AC Relay 230 V AC, 3 A (2) TU531 / TU532 DX531 1SAP245000R0001 0.300
– / 32 / – – Transistor 24 V DC, 0.5 A TU515 / TU516 DO524 1SAP240700R0001 0.200
– / 8 / – – Transistor 24 V DC, 2 A TU541 / TU542 DO526 1SAP240800R0001 0.200
(2) Relay outputs, changeover contacts.

—
DO524
