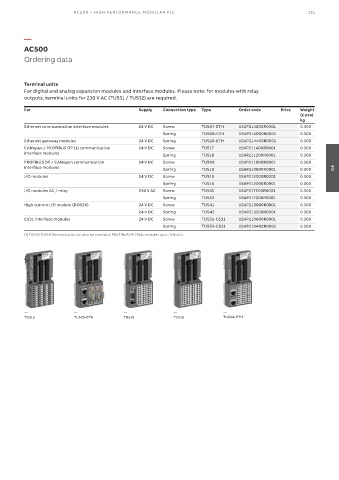

AC500 – HIGH PERFORMANCE MODUL AR PLC 115

—
AC500
Ordering data

Terminal units
For digital and analog expansion modules and interface modules. Please note: for modules with relay
outputs, terminal units for 230 V AC (TU531 / TU532) are required.

For Supply Connection type Type Order code Price Weight
(1 pce)
kg
Ethernet communication interface modules 24 V DC Screw TU507-ETH 1SAP214200R0001 0.300
Spring TU508-ETH 1SAP214000R0001 0.300
Ethernet gateway modules 24 V DC Spring TU520-ETH 1SAP214400R0001 0.300
CANopen / PROFIBUS DP (1) communication 24 V DC Screw TU517 1SAP211400R0001 0.300
interface modules Spring TU518 1SAP211200R0001 0.300
PROFIBUS DP / CANopen communication 24 V DC Screw TU509 1SAP211000R0001 0.300
interface modules Spring TU510 1SAP210800R0001 0.300 04
I/O modules 24 V DC Screw TU515 1SAP212200R0001 0.300
Spring TU516 1SAP212000R0001 0.300
I/O modules AC / relay 230 V AC Screw TU531 1SAP217200R0001 0.300
Spring TU532 1SAP217000R0001 0.300
High current I/O module (DO526) 24 V DC Screw TU541 1SAP213000R0001 0.300
24 V DC Spring TU542 1SAP213200R0001 0.300
CS31 interface modules 24 V DC Screw TU551-CS31 1SAP210600R0001 0.300
Spring TU552-CS31 1SAP210400R0001 0.300
(1) TU517/TU518 Terminal units can also be used with PROFIBUS DP CI54x modules up to 1 Mbit/s.

— — — — —
TU515 TU520-ETH TU510 TU518 TU508-ETH
