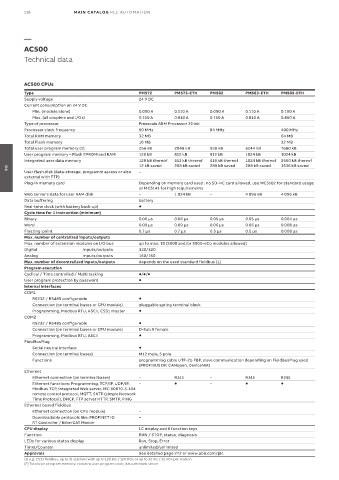

118 MAIN CATALOG PLC AUTOMATION

—
AC500
Technical data

AC500 CPUs
Type PM572 PM573-ETH PM582 PM583-ETH PM585-ETH
Supply voltage 24 V DC
Current consumption on 24 V DC
Min. (module alone) 0.050 A 0.110 A 0.050 A 0.110 A 0.150 A
Max. (all couplers and I/Os) 0.750 A 0.810 A 0.750 A 0.810 A 0.850 A
Type of processor Freescale ARM Processor 32-bit
Processor clock frequency 50 MHz 84 MHz 400 MHz
Total RAM memory 32 MB 64 MB
Total Flash memory 16 MB 32 MB
Total user program memory (2) 256 kB 2048 kB 928 kB 6144 kB 7680 kB
User program memory – Flash EPROM and RAM 128 kB 512 kB 512 kB 1024 kB 1024 kB
Integrated user data memory 128 kB thereof 512 kB thereof 416 kB thereof 1024 kB thereof 2560 kB thereof
12 kB saved 288 kB saved 288 kB saved 288 kB saved 1536 kB saved
User flash disk (data-storage, programm access or also –
04
external with FTP)
Plug-in memory card Depending on memory card used : no SD-HC card allowed, use MC5102 for standard usage
or MC5141 for high requirements
Web server's data for user RAM disk – 1 024 kB – 4 096 kB 4 096 kB
Data buffering battery
Real-time clock (with battery back-up) 
Cycle time for 1 instruction (minimum)
Binary 0.06 µs 0.06 µs 0.05 µs 0.05 µs 0.004 µs
Word 0.09 µs 0.09 µs 0.06 µs 0.06 µs 0.008 µs
Floating-point 0.7 µs 0.7 µs 0.5 µs 0.5 µs 0.008 µs
Max. number of centralized inputs/outputs
Max. number of extension modules on I/O bus up to max. 10 (S500 and/or S500-eCo modules allowed)
Digital inputs/outputs 320/320
Analog inputs/outputs 160/160
Max. number of decentralized inputs/outputs depends on the used standard fieldbus (1)
Program execution
Cyclical / Time controlled / Multi tasking //
User program protection by password 
Internal interfaces
COM1
RS232 / RS485 configurable 
Connection (on terminal bases or CPU module) pluggable spring terminal block
Programming, Modbus RTU, ASCII, CS31 master 
COM2
RS232 / RS485 configurable 
Connection (on terminal bases or CPU module) D-Sub 9 female
Programming, Modbus RTU, ASCII 
FieldBusPlug
Serial neutral interface 
Connection (on terminal bases) M12 male, 5 pole
Functions programming cable UTF-21-FBP, slave communication depending on FieldBusPlug used
(PROFIBUS DP, CANopen, DeviceNet)
Ethernet
Ethernet connection (on terminal bases) – RJ45 – RJ45 RJ45
Ethernet functions: Programming, TCP/IP, UDP/IP, –  –  
Modbus TCP, integrated Web server, IEC 60870-5-104
remote control protocol, MQTT, SNTP (simple Network
Time Protocol), DHCP, FTP server HTTP, SMTP, PING
Ethernet based fieldbus
Ethernet connection (on CPU module) –
Downloadable protocols like: PROFINET IO –
RT Controller / EtherCAT Master
CPU display LC display and 8 function keys
Function RUN / STOP, status, diagnosis
LEDs for various status display Run, Stop, Error
Timer/Counter unlimited/unlimited
Approvals See detailed page 272 or www.abb.com/plc
(1) e.g. CS31 fieldbus: up to 31 stations with up to 120 DIs / 120 DOs or up to 32 AIs / 32 AOs per station.
(2) Total user program memory: contains user program code, data and web server
