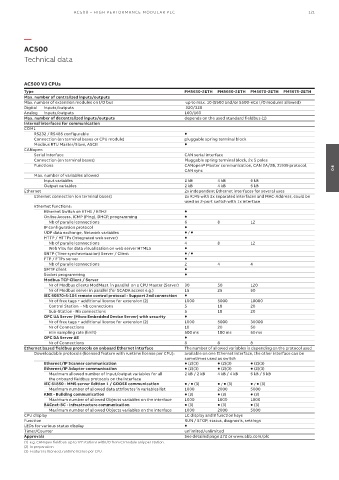

AC500 – HIGH PERFORMANCE MODUL AR PLC 121

—
AC500
Technical data

AC500 V3 CPUs
Type PM5630-2ETH PM5650-2ETH PM5670-2ETH PM5675-2ETH
Max. number of centralized inputs/outputs
Max. number of extension modules on I/O bus up to max. 10 (S500 and/or S500-eCo I/O modules allowed)
Digital inputs/outputs 320/320
Analog inputs/outputs 160/160
Max. number of decentralized inputs/outputs depends on the used standard fieldbus (1)
Internal interfaces for communication
COM1
RS232 / RS485 configurable 
Connection (on terminal bases or CPU module) pluggable spring terminal block
Modbus RTU Master/Slave, ASCII 
CANopen
Serial interface CAN serial interface
Connection (on terminal bases) Pluggable spring terminal block, 2x 5 poles
Functions CANopen® Master communication, CAN 2A/2B, J1939 protocol,
CAN sync 04
Max. number of variables allowed
Input variables 2 kB 4 kB 5 kB
Output variables 2 kB 4 kB 5 kB
Ethernet 2x independent Ethernet interfaces for several uses
Ethernet connection (on terminal bases) 2x RJ45 with 2x separated interfaces and MAC-Address, could be
used as 2-port switch with 1x interface
Ethernet functions:
Ethernet Switch on ETH1 / ETH2 
Online Access, ICMP (Ping), DHCP, programming 
Nb of parallel connections 6 8 12
IP configuration protocol 
UDP data exchange, Network variables  / 
HTTP / HTTPs (integrated web server) 
Nb of parallel connections 4 8 12
Web Visu for data visualisation on web server HTML5 
SNTP (Time synchronization) Server / Client  / 
FTP / FTPs server 
Nb of parallel connections 2 4 4
SMTP client 
Socket programming 
Modbus TCP Client / Server
Nr of Modbus clients ModMast in parallel on a CPU Master (Server) 30 50 120
Nr of Modbus server in parallel (for SCADA access e.g.) 15 25 50
IEC 60870-5-104 remote control protocol - Support 2nd connection 
Nr of free tags + additional license for extension (2) 1000 5000 10000
Control Station - Nb connections 5 10 20
Sub-Station - Nb connections 5 10 20
OPC UA Server (Micro Embedded Device Server) with security 
Nr of free tags + additional license for extension (2) 1000 5000 30000
Nr of Connections 10 20 50
min sampling rate (limit) 500 ms 100 ms 50 ms
OPC DA Server AE 
Nr of Connections 8 8 8
Ethernet based fieldbus protocols on onboard Ethernet interface The number of allowed variables is depending on the protocol used
Downloadable protocols (licensed feature with runtime license per CPU): available on one Ethernet interface, the other interface can be
sometimes used as switch
Ethernet/IP Scanner communication  (2)(3)  (2)(3)  (2)(3)
Ethernet/IP Adapter communication  (2)(3)  (2)(3)  (2)(3)
Maximum allowed number of input/output variables for all 2 kB / 2 kB 4 kB / 4 kB 5 kB / 5 kB
the onboard fieldbus protocols on the interface
IEC 61850 - MMS server Edition 1 / GOOSE communication  /  (3)  /  (3)  /  (3)
Maximum number of allowed data attributes in variables list 1000 2000 5000
KNX - Building communication  (3)  (3)  (3)
Maximum number of allowed Objects variables on the interface 1000 1000 1000
BACnet-BC - Infrastructure communication  (3)  (3)  (3)
Maximum number of allowed Objects variables on the interface 1000 2000 5000
CPU display LC display and 8 function keys
Function RUN / STOP, status, diagnosis, settings
LEDs for various status display 
Timer/Counter unlimited/unlimited
Approvals See detailed page 272 or www.abb.com/plc
(1) e.g. CANopen fieldbus: up to 127 stations withI/O from CI module only per station.
(2) In preparation
(3) Feature is licensed, runtime license per CPU.
