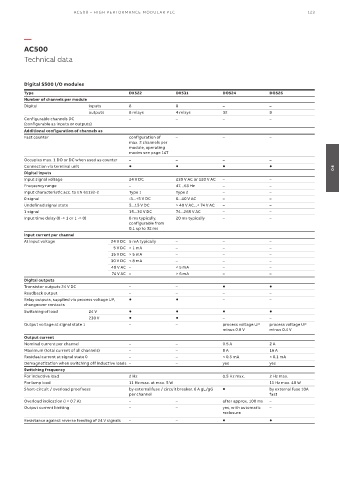

AC500 – HIGH PERFORMANCE MODUL AR PLC                                             123




          —
          AC500
          Technical data




          Digital S500 I/O modules
          Type                                DX522            DX531           DO524            DO526
          Number of channels per module
          Digital               inputs        8                8               –                –
                                outputs       8 relays         4 relays        32               8
          Configurable channels DC            –                –               –                –
          (configurable as inputs or outputs)
          Additional configuration of channels as
          Fast counter                        configuration of    –            –                –
                                              max. 2 channels per
                                              module, operating
                                              modes see page 147
          Occupies max. 1 DO or DC when used as counter  –     –               –                –
          Connection via terminal unit                                                                            04
          Digital inputs
          Input signal voltage                24 V DC          230 V AC or 120 V AC  –          –
          Frequency range                     –                47…63 Hz        –                –
          Input characteristic acc. to EN 61132-2  Type 1      Type 2          –                –
          0 signal                            -3...+5 V DC     0...40 V AC     –                –
          Undefined signal state              5...15 V DC      > 40 V AC...< 74 V AC  –         –
          1 signal                            15...30 V DC     74...265 V AC   –                –
          Input time delay (0 -> 1 or 1 -> 0)   8 ms typically,   20 ms typically  –            –
                                              configurable from
                                              0.1 up to 32 ms
          Input current per channel
          At input voltage              24 V DC 5 mA typically  –              –                –
                                         5 V DC > 1 mA         –               –                –
                                        15 V DC > 5 mA         –               –                –
                                        30 V DC < 8 mA         –               –                –
                                        40 V AC –              < 5 mA          –                –
                                        74 V AC –              > 6 mA          –                –
          Digital outputs
          Transistor outputs 24 V DC          –                –                               
          Readback output                     –                –               –                –
          Relay outputs, supplied via process voltage UP,                    –                –
          changeover contacts
          Switching of load     24 V                                                         
                                230 V                                        –                –
          Output voltage at signal state 1    –                –               process voltage UP   process voltage UP
                                                                               minus 0.8 V      minus 0.4 V
          Output current
          Nominal current per channel         –                –               0.5 A            2 A
          Maximum (total current of all channels)  –           –               8 A              16 A
          Residual current at signal state 0  –                –               < 0.5 mA         < 0.1 mA
          Demagnetization when switching off inductive loads –  –              yes              yes
          Switching frequency
          For inductive load                  2 Hz                             0.5 Hz max.      2 Hz max.
          For lamp load                       11 Hz max. at max. 5 W                            11 Hz max. 48 W
          Short-circuit / overload proofness  by external fuse / circuit breaker. 6 A gL/gG      by external fuse 10A
                                              per channel                                       fast
          Overload indication (I > 0.7 A)     –                –               after approx. 100 ms  –
          Output current limiting             –                –               yes, with automatic    –
                                                                               reclosure
          Resistance against reverse feeding of 24 V signals  –  –                             
