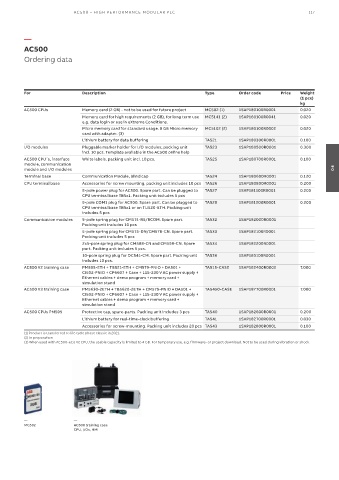

AC500 – HIGH PERFORMANCE MODUL AR PLC 117

—
AC500
Ordering data

For Description Type Order code Price Weight
(1 pce)
kg
AC500 CPUs Memory card (2 GB) - not to be used for future project MC502 (1) 1SAP180100R0001 0.020
Memory card for high requirements (2 GB), for long term use MC5141 (2) 1SAP180100R0041 0.020
e.g. data login or use in eXtreme Conditions.
Micro memory card for standard usage. 8 GB Micro memory MC5102 (2) 1SAP180100R0002 0.020
card with adapter. (3)
Lithium battery for data buffering TA521 1SAP180300R0001 0.100
I/O modules Pluggable marker holder for I/O modules, packing unit TA523 1SAP180500R0001 0.300
incl. 10 pcs. Template available in the AC500 online help
AC500 CPU´s, interface White labels, packing unit incl. 10 pcs. TA525 1SAP180700R0001 0.100
module, communication
module and I/O modules 04
Terminal base Communication Module, blind cap TA524 1SAP180600R0001 0.120
CPU terminal base Accessories for screw mounting, packing unit includes 10 pcs TA526 1SAP180800R0001 0.200
5-pole power plug for AC500. Spare part. Can be plugged to TA527 1SAP181100R0001 0.200
CPU terminal base TB5x1. Packing unit includes 5 pcs
9-pole COM1 plug for AC500. Spare part. Can be plugged to TA528 1SAP181200R0001 0.200
CPU terminal base TB5x1 or on TU520-ETH. Packing unit
includes 5 pcs
Communication modules 9-pole spring plug for CM574-RS/RCOM. Spare part. TA532 1SAP182000R0001
Packing unit includes 10 pcs
5-pole spring plug for CM575-DN/CM578-CN. Spare part. TA533 1SAP182100R0001
Packing unit includes 5 pcs
2x5-pole spring plug for CM588-CN and CM598-CN. Spare TA534 1SAP182200R0001
part. Packing unit includes 5 pcs.
10-pole spring plug for DC541-CM. Spare part. Packing unit TA536 1SAP183100R0001
includes 10 pcs.
AC500 V2 training case PM585-ETH + TB521-ETH + CM579-PNIO + DA501 + TA515-CASE 1SAP182400R0002 7.000
CI502-PNIO + CP6607 + Case + 115-230 V AC power supply +
Ethernet cables + demo program + memory card +
simulation stand
AC500 V3 training case PM5630-2ETH + TB5620-2ETH + CM579-PNIO + DA501 + TA5450-CASE 1SAP187700R0001 7.000
CI502-PNIO + CP6607 + Case + 115-230 V AC power supply +
Ethernet cables + demo program + memory card +
simulation stand
AC500 CPUs PM595 Protective cap, spare-parts. Packing unit includes 3 pcs TA540 1SAP182600R0001 0.200
Lithium battery for real-time-clock buffering TA541 1SAP182700R0001 0.030
Accessories for screw-mounting. Packing unit includes 20 pcs TA543 1SAP182800R0001 0.100
(1) Product is transferred to life cycle phase classic in 2021.
(2) In preparation
(3) When used with AC500-eCo V2 CPU, the usable capacity is limited to 4 GB. For temporary use, e.g. firmware- or project download. Not to be used during vibration or shock.

— —
MC502 AC500 training case
CPU, I/Os, HMI
