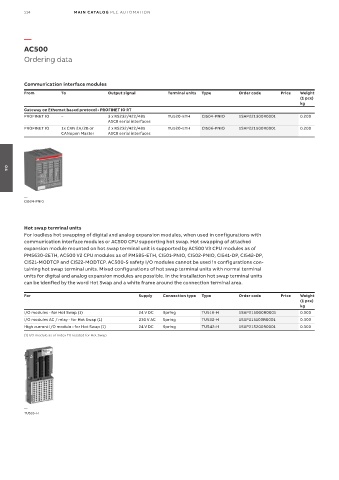

114 MAIN CATALOG PLC AUTOMATION

—
AC500
Ordering data

Communication interface modules
From To Output signal Terminal units Type Order code Price Weight
(1 pce)
kg
Gateway on Ethernet based protocol - PROFINET IO RT
PROFINET IO – 3 x RS232/422/485 TU520-ETH CI504-PNIO 1SAP221300R0001 0.200
ASCII serial interfaces
PROFINET IO 1x CAN 2A/2B or 2 x RS232/422/485 TU520-ETH CI506-PNIO 1SAP221500R0001 0.200
CANopen Master ASCII serial interfaces

04

—
CI504-PNIO

Hot swap terminal units
For loadless hot swapping of digital and analog expansion modules, when used in configurations with
communication interface modules or AC500 CPU supporting hot swap. Hot swapping of attached
expansion module mounted on hot swap terminal unit is supported by AC500 V3 CPU modules as of
PM5630-2ETH, AC500 V2 CPU modules as of PM585-ETH, CI501-PNIO, CI502-PNIO, CI541-DP, CI542-DP,
CI521-MODTCP and CI522-MODTCP. AC500-S safety I/O modules cannot be used in configurations con-
taining hot swap terminal units. Mixed configurations of hot swap terminal units with normal terminal
units for digital and analog expansion modules are possible. In the installation hot swap terminal units
can be idenfied by the word Hot Swap and a white frame around the connection terminal area.

For Supply Connection type Type Order code Price Weight
(1 pce)
kg
I/O modules - for Hot Swap (1) 24 V DC Spring TU516-H 1SAP215000R0001 0.300
I/O modules AC / relay - for Hot Swap (1) 230 V AC Spring TU532-H 1SAP215100R0001 0.300
High current I/O module - for Hot Swap (1) 24 V DC Spring TU542-H 1SAP215200R0001 0.300
(1) I/O module as of index F0 needed for Hot Swap

—
TU516-H
