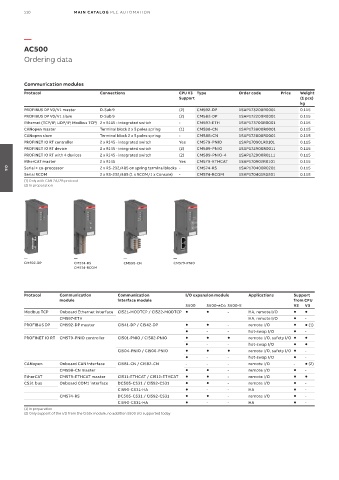

110 MAIN CATALOG PLC AUTOMATION

—
AC500
Ordering data

Communication modules
Protocol Connections CPU V3 Type Order code Price Weight
Support (1 pce)
kg
PROFIBUS DP V0/V1 master D-Sub 9 (2) CM592-DP 1SAP173200R0001 0.115
PROFIBUS DP V0/V1 slave D-Sub 9 (2) CM582-DP 1SAP172200R0001 0.115
Ethernet (TCP/IP, UDP/IP, Modbus TCP) 2 x RJ45 - integrated switch - CM597-ETH 1SAP173700R0001 0.115
CANopen master Terminal block 2 x 5 poles spring (1) CM598-CN 1SAP173800R0001 0.115
CANopen slave Terminal block 2 x 5 poles spring - CM588-CN 1SAP172800R0001 0.115
PROFINET IO RT controller 2 x RJ45 - integrated switch Yes CM579-PNIO 1SAP170901R0101 0.115
PROFINET IO RT device 2 x RJ45 - integrated switch (2) CM589-PNIO 1SAP172900R0011 0.115
PROFINET IO RT with 4 devices 2 x RJ45 - integrated switch (2) CM589-PNIO-4 1SAP172900R0111 0.115
EtherCAT master 2 x RJ45 Yes CM579-ETHCAT 1SAP170902R0101 0.115
Serial + co-processor 2 x RS-232/485 on spring terminal blocks - CM574-RS 1SAP170400R0201 0.115
04
Serial RCOM 2 x RS-232/485 (1 x RCOM/1 x Console) - CM574-RCOM 1SAP170401R0201 0.115
(1) Only with CAN 2A/2B protocol
(2) In preparation

— — — —
CM592-DP CM574-RS CM598-CN CM579-PNIO
CM574-RCOM

Protocol Communication Communication I/O expansion module Applications Support
module interface module from CPU
S500 S500-eCo S500-S V2 V3
Modbus TCP Onboard Ethernet interface CI521-MODTCP / CI522-MODTCP   - HA, remote I/O  
CM597-ETH HA, remote I/O  -
PROFIBUS DP CM592-DP master CI541-DP / CI542-DP   - remote I/O   (1)
 - - hot-swap I/O  -
PROFINET IO RT CM579-PNIO controller CI501-PNIO / CI502-PNIO    remote I/O, safety I/O  
 - - hot-swap I/O  
CI504-PNIO / CI506-PNIO    remote I/O, safety I/O  -
 - - hot-swap I/O  -
CANopen Onboard CAN interface CI581-CN / CI582-CN - - - remote I/O -  (2)
CM598-CN master   - remote I/O  -
EtherCAT CM579-ETHCAT master CI511-ETHCAT / CI512-ETHCAT   - remote I/O  
CS31 bus Onboard COM1 interface DC505-CS31 / CI592-CS31   - remote I/O  -
CI590-CS31-HA  - - HA  -
CM574-RS DC505-CS31 / CI592-CS31   - remote I/O  -
CI590-CS31-HA  - - HA  -
(1) In preparation
(2) Only support of the I/O from the CI58x module, no addition S500 I/O supported today
