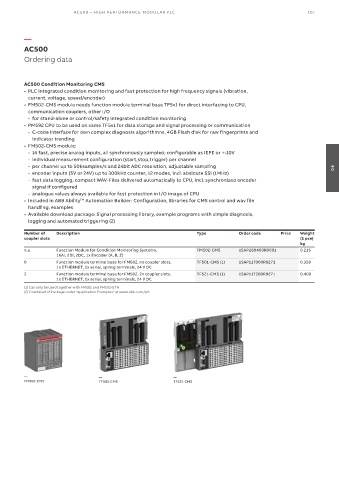

AC500 – HIGH PERFORMANCE MODUL AR PLC 107

—
AC500
Ordering data

AC500 Condition Monitoring CMS
• PLC integrated condition monitoring and fast protection for high frequency signals (vibration,
current, voltage, speed/encoder)
• FM502-CMS module needs function module terminal base TF5x1 for direct interfacing to CPU,
communication couplers, other I/O
- for stand-alone or control/safety integrated condition monitoring
• PM592 CPU to be used on same TF5x1 for data storage and signal processing or communication
- C-code interface for own complex diagnosis algorithmns, 4GB Flash disk for raw fingerprints and
indicator trending
• FM502-CMS module:
- 16 fast, precise analog inputs, all synchronously sampled; configurable as IEPE or +-10V
- individual measurement configuration (start,stop,trigger) per channel
- per channel up to 50ksamples/s and 24bit ADC resolution, adjustable sampling 04
- encoder inputs (5V or 24V) up to 300kHz counter; 12 modes, incl. absloute SSI (1MHz)
- fast data logging, compact WAV-Files delivered automatically to CPU, incl. synchronized encoder
signal if configured
- analogue values always available for fast protection in I/O image of CPU
• Included in ABB Ability Automation Builder: Configuration, libraries for CMS control and wav file
TM
handling, examples
• Available download package: Signal processing library, example programs with simple diagnosis,
logging and automated triggering (2)

Number of Description Type Order code Price Weight
coupler slots (1 pce)
kg
n.a. Function Module for Condition Monitoring Systems, FM502-CMS 1SAP260400R0001 0.215
16AI, 2DI, 2DC, 1x Encoder (A, B, Z)
0 Function module terminal base for FM502, no coupler slots, TF501-CMS (1) 1SAP117000R0271 0.350
1x ETHERNET, 1x serial, spring terminals, 24 V DC
2 Function module terminal base for FM502, 2x coupler slots, TF521-CMS (1) 1SAP117200R0271 0.400
1x ETHERNET, 1x serial, spring terminals, 24 V DC
(1) Can only be used together with FM502 and PM592-ETH
(2) Download of Package under “Application Examples” at www.abb.com/plc

— — —
FM502-CMS TF501-CMS TF521-CMS
