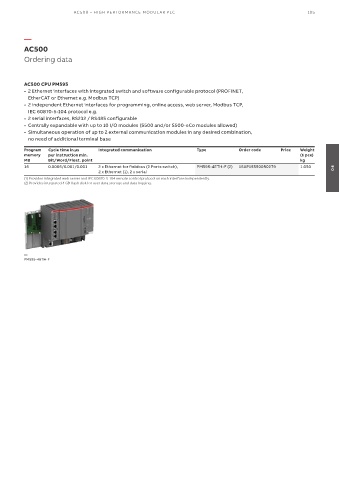

AC500 – HIGH PERFORMANCE MODUL AR PLC 105

—
AC500
Ordering data

AC500 CPU PM595
• 2 Ethernet interfaces with integrated switch and software configurable protocol (PROFINET,
EtherCAT or Ethernet e.g. Modbus TCP)
• 2 independent Ethernet interfaces for programming, online access, web server, Modbus TCP,
IEC 60870-5-104 protocol e.g.
• 2 serial interfaces, RS232 / RS485 configurable
• Centrally expandable with up to 10 I/O modules (S500 and/or S500-eCo modules allowed)
• Simultaneous operation of up to 2 external communication modules in any desired combination,
no need of additional terminal base
Program Cycle time in µs Integrated communication Type Order code Price Weight
memory per instruction min. (1 pce)
MB Bit/Word/Float. point kg
16 0.0006/0.001/0.001 2 x Ethernet for fieldbus (2 Ports switch), PM595-4ETH-F (2) 1SAP155500R0279 1.050 04
2 x Ethernet (1), 2 x serial
(1) Provides integrated web server and IEC 60870-5-104 remote control protocol on each interface independently.
(2) Provides integrated 4 GB flash disk for user data storage and data logging.

—
PM595-4ETH-F
