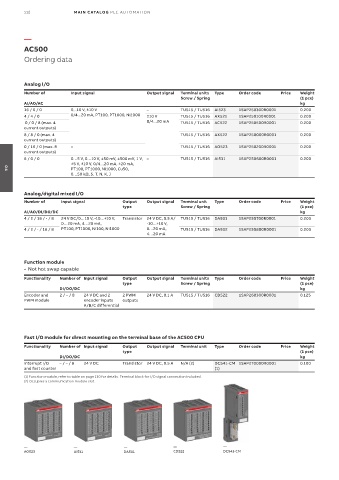

112 MAIN CATALOG PLC AUTOMATION

—
AC500
Ordering data

Analog I/O
Number of Input signal Output signal Terminal units Type Order code Price Weight
Screw / Spring (1 pce)
AI/AO/AC kg
16 / 0 / 0 0...10 V, ±10 V – TU515 / TU516 AI523 1SAP250300R0001 0.200
4 / 4 / 0 0/4...20 mA, PT100, PT1000, Ni1000 ±10 V TU515 / TU516 AX521 1SAP250100R0001 0.200
0 / 0 / 8 (max. 4 0/4...20 mA TU515 / TU516 AC522 1SAP250500R0001 0.200
current outputs)
8 / 8 / 0 (max. 4 TU515 / TU516 AX522 1SAP250000R0001 0.200
current outputs)
0 / 16 / 0 (max. 8 – TU515 / TU516 AO523 1SAP250200R0001 0.200
current outputs)
8 / 0 / 0 0…5 V, 0…10 V, ±50 mV, ±500 mV, 1 V, – TU515 / TU516 AI531 1SAP250600R0001 0.200
±5 V, ±10 V, 0/4…20 mA, ±20 mA,
PT100, PT1000, Ni1000, Cu50,
04
0…50 kΩ, S, T, N, K, J

Analog/digital mixed I/O
Number of Input signal Output Output signal Terminal unit Type Order code Price Weight
type Screw / Spring (1 pce)
AI/AO/DI/DO/DC kg
4 / 2 / 16 / - / 8 24 V DC/0…10 V, -10…+10 V, Transistor 24 V DC, 0.5 A/ TU515 / TU516 DA501 1SAP250700R0001 0.200
0…20 mA, 4…20 mA, -10…+10 V,
4 / 2 / - / 16 / 8 PT100, PT1000, Ni100, Ni1000 0…20 mA, TU515 / TU516 DA502 1SAP250800R0001 0.200
4…20 mA

Function module
• Not hot swap capable
Functionality Number of Input signal Output Output signal Terminal units Type Order code Price Weight
type Screw / Spring (1 pce)
DI/DO/DC kg
Encoder and 2 / – / 8 24 V DC and 2 2 PWM 24 V DC, 0.1 A TU515 / TU516 CD522 1SAP260300R0001 0.125
PWM module encoder inputs outputs
A/B/C differential

Fast I/O module for direct mounting on the terminal base of the AC500 CPU
Functionality Number of Input signal Output Output signal Terminal unit Type Order code Price Weight
type (1 pce)
DI/DO/DC kg
Interrupt I/O – / – / 8 24 V DC Transistor 24 V DC, 0.5 A N/A (2) DC541-CM 1SAP270000R0001 0.100
and fast counter (1)
(1) Function module, refer to table on page 130 for details. Terminal block for I/O signal connection included.
(2) Occupies a communication module slot.

— — — — —
AO523 AI531 DA501 CD522 DC541-CM
