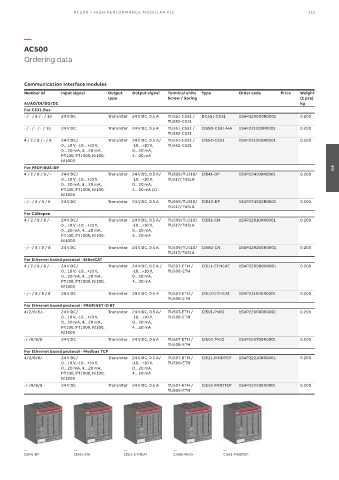

AC500 – HIGH PERFORMANCE MODUL AR PLC 113

—
AC500
Ordering data

Communication interface modules
Number of Input signal Output Output signal Terminal units Type Order code Price Weight
type Screw / Spring (1 pce)
AI/AO/DI/DO/DC kg
For CS31-Bus
- / - / 8 / - / 16 24 V DC Transistor 24 V DC, 0.5 A TU551-CS31 / DC551-CS31 1SAP220500R0001 0.200
TU552-CS31
- / - / - / - / 16 24 V DC Transistor 24 V DC, 0.5 A TU551-CS31 / CI590-CS31-HA 1SAP221100R0001 0.200
TU552-CS31
4 / 2 / 8 / - / 8 24 V DC/ Transistor 24 V DC, 0.5 A/ TU551-CS31 / CI592-CS31 1SAP221200R0001 0.200
0…10 V, -10…+10 V, -10…+10 V, TU552-CS31
0…20 mA, 4…20 mA, 0…20 mA,
PT100, PT1000, Ni100, 4…20 mA
Ni1000
For PROFIBUS-DP 04
4 / 2 / 8 / 8 / - 24 V DC/ Transistor 24 V DC, 0.5 A/ TU509/TU510/ CI541-DP 1SAP224100R0001 0.200
0…10 V, -10…+10 V, -10…+10 V, TU517/TU518
0…20 mA, 4…20 mA, 0…20 mA,
PT100, PT1000, Ni100, 4…20 mA (1)
Ni1000
- / - / 8 / 8 / 8 24 V DC Transistor 24 V DC, 0.5 A TU509/TU510/ CI542-DP 1SAP224200R0001 0.200
TU517/TU518
For CANopen
4 / 2 / 8 / 8 / - 24 V DC/ Transistor 24 V DC, 0.5 A/ TU509/TU510/ CI581-CN 1SAP228100R0001 0.200
0…10 V, -10…+10 V, -10…+10 V, TU517/TU518
0…20 mA, 4…20 mA, 0…20 mA,
PT100, PT1000, Ni100, 4…20 mA
Ni1000
- / - / 8 / 8 / 8 24 V DC Transistor 24 V DC, 0.5 A TU509/TU510/ CI582-CN 1SAP228200R0001 0.200
TU517/TU518
For Ethernet based protocol - EtherCAT
4 / 2 / 8 / 8 / - 24 V DC/ Transistor 24 V DC, 0.5 A / TU507-ETH / CI511-ETHCAT 1SAP220900R0001 0.200
0…10 V, -10…+10 V, -10…+10 V, TU508-ETH
0…20 mA, 4…20 mA, 0…20 mA,
PT100, PT1000, Ni100, 4…20 mA
Ni1000
- / - / 8 / 8 / 8 24 V DC Transistor 24 V DC, 0.5 A TU507-ETH / CI512-ETHCAT 1SAP221000R0001 0.200
TU508-ETH
For Ethernet based protocol - PROFINET IO RT
4/2/8/8/- 24 V DC/ Transistor 24 V DC, 0.5 A/ TU507-ETH / CI501-PNIO 1SAP220600R0001 0.200
0…10 V, -10…+10 V, -10…+10 V, TU508-ETH
0…20 mA, 4…20 mA, 0…20 mA,
PT100, PT1000, Ni100, 4…20 mA
Ni1000
-/-/8/8/8 24 V DC Transistor 24 V DC, 0.5 A TU507-ETH / CI502-PNIO 1SAP220700R0001 0.200
TU508-ETH
For Ethernet based protocol - Modbus TCP
4/2/8/8/- 24 V DC/ Transistor 24 V DC, 0.5 A/ TU507-ETH / CI521-MODTCP 1SAP222100R0001 0.200
0…10 V, -10…+10 V, -10…+10 V, TU508-ETH
0…20 mA, 4…20 mA, 0…20 mA,
PT100, PT1000, Ni100, 4…20 mA
Ni1000
-/-/8/8/8 24 V DC Transistor 24 V DC, 0.5 A TU507-ETH / CI522-MODTCP 1SAP222200R0001 0.200
TU508-ETH

— — — — —
CI541-DP CI581-CN CI511-ETHCAT CI501-PNIO CI521-MODTCP
