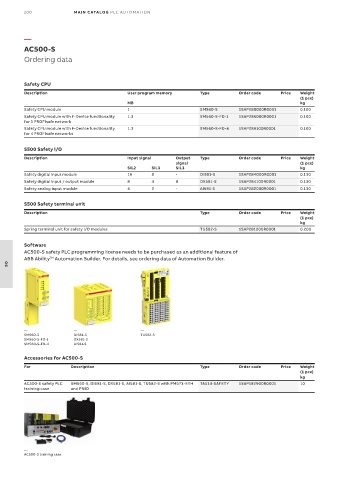

200 MAIN CATALOG PLC AUTOMATION

—
AC500-S
Ordering data

Safety CPU
Description User program memory Type Order code Price Weight
(1 pce)
MB kg
Safety CPU module 1 SM560-S 1SAP280000R0001 0.100
Safety CPU module with F-Device functionality 1.3 SM560-S-FD-1 1SAP286000R0001 0.100
for 1 PROFIsafe network
Safety CPU module with F-Device functionality 1.3 SM560-S-FD-4 1SAP286100R0001 0.100
for 4 PROFIsafe networks

S500 Safety I/O
Description Input signal Output Type Order code Price Weight
signal (1 pce)
SIL2 SIL3 SIL3 kg
Safety digital input module 16 8 - DI581-S 1SAP284000R0001 0.130
Safety digital input / output module 8 4 8 DX581-S 1SAP284100R0001 0.130
Safety analog input module 4 2 - AI581-S 1SAP282000R0001 0.130

S500 Safety terminal unit
Description Type Order code Price Weight
(1 pce)
kg
Spring terminal unit for safety I/O modules TU582-S 1SAP281200R0001 0.200

Software
AC500-S safety PLC programming license needs to be purchased as an additional feature of
ABB Ability Automation Builder. For details, see ordering data of Automation Builder.
TM
06

— — —
SM560-S DI581-S TU582-S
SM560-S-FD-1 DX581-S
SM560-S-FD-4 AI581-S

Accessories for AC500-S
For Description Type Order code Price Weight
(1 pce)
kg
AC500-S safety PLC SM560-S, DI581-S, DX581-S, AI581-S, TU582-S with PM573-ETH TA514-SAFETY 1SAP182900R0001 10
training case and PNIO

—
AC500-S training case
