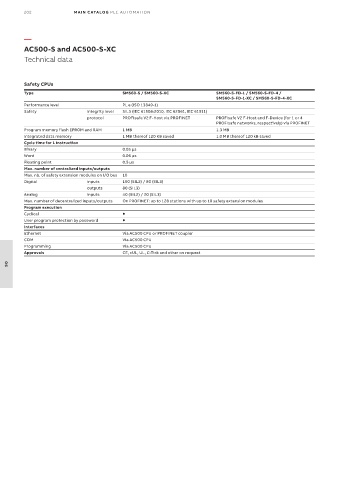

AC500-S and AC500-S-XC
Technical data

Safety CPUs
Type SM560-S / SM560-S-XC SM560-S-FD-1 / SM560-S-FD-4 /
SM560-S-FD-1-XC / SM560-S-FD-4-XC
Performance level PL e (ISO 13849-1)
Safety integrity level SIL3 (IEC 61508:2010, IEC 62061, IEC 61511)
protocol PROFIsafe V2 F-Host via PROFINET PROFIsafe V2 F-Host and F-Device (for 1 or 4
PROFIsafe networks, respectively) via PROFINET
Program memory flash EPROM and RAM 1 MB 1.3 MB
Integrated data memory 1 MB thereof 120 KB saved 1.0 MB thereof 120 kB saved
Cycle time for 1 instruction
Binary 0.05 μs
Word 0.06 μs
Floating point 0.5 μs
Max. number of centralized inputs/outputs
Max. nb. of safety extension modules on I/O bus 10
Digital inputs 160 (SIL2) / 80 (SIL3)
outputs 80 (SIL3)
Analog inputs 40 (SIL2) / 20 (SIL3)
Max. number of decentralized inputs/outputs On PROFINET: up to 128 stations with up to 10 safety extension modules
Program execution
Cyclical 
User program protection by password 
Interfaces
Ethernet Via AC500 CPU or PROFINET coupler
COM Via AC500 CPU
Programming Via AC500 CPU
Approvals CE, cUL, UL, C-Tick and other on request
