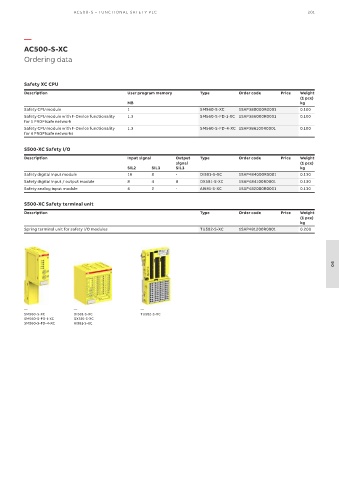

AC500 -S – FUNCTIONAL SAFET Y PLC 201

—
AC500-S-XC
Ordering data

Safety XC CPU
Description User program memory Type Order code Price Weight
(1 pce)
MB kg
Safety CPU module 1 SM560-S-XC 1SAP380000R0001 0.100
Safety CPU module with F-Device functionality 1.3 SM560-S-FD-1-XC 1SAP386000R0001 0.100
for 1 PROFIsafe network
Safety CPU module with F-Device functionality 1.3 SM560-S-FD-4-XC 1SAP386100R0001 0.100
for 4 PROFIsafe networks

S500-XC Safety I/O
Description Input signal Output Type Order code Price Weight
signal (1 pce)
SIL2 SIL3 SIL3 kg
Safety digital input module 16 8 - DI581-S-XC 1SAP484000R0001 0.130
Safety digital input / output module 8 4 8 DX581-S-XC 1SAP484100R0001 0.130
Safety analog input module 4 2 - AI581-S-XC 1SAP482000R0001 0.130

S500-XC Safety terminal unit
Description Type Order code Price Weight
(1 pce)
kg
Spring terminal unit for safety I/O modules TU582-S-XC 1SAP481200R0001 0.200

06

— — —
SM560-S-XC DI581-S-XC TU582-S-XC
SM560-S-FD-1-XC DX581-S-XC
SM560-S-FD-4-XC AI581-S-XC
