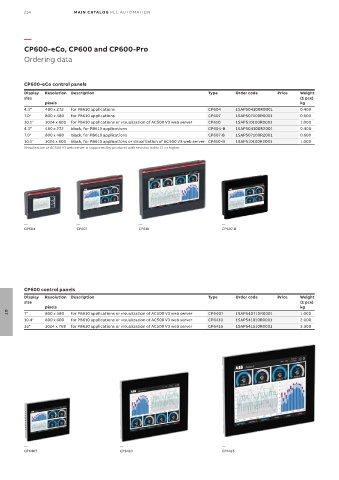

214 MAIN CATALOG PLC AUTOMATION

—
CP600-eCo, CP600 and CP600-Pro
Ordering data

CP600-eCo control panels
Display Resolution Description Type Order code Price Weight
size (1 pce)
pixels kg
4.3" 480 x 272 for PB610 applications CP604 1SAP504100R0001 0.400
7.0" 800 x 480 for PB610 applications CP607 1SAP507100R0001 0.600
10.1" 1024 x 600 for PB610 applications or visualization of AC500 V3 web server CP610 1SAP510100R0001 1.000
4.3" 480 x 272 black, for PB610 applications CP604-B 1SAP504100R2001 0.400
7.0" 800 x 480 black, for PB610 applications CP607-B 1SAP507100R2001 0.600
10.1" 1024 x 600 black, for PB610 applications or visualization of AC500 V3 web server CP610-B 1SAP510100R2001 1.000
Visualization of AC500 V3 web server is supported by products with revision index C1 or higher.

— — — —
CP604 CP607 CP610 CP607-B

CP600 control panels
Display Resolution Description Type Order code Price Weight
size (1 pce)
pixels kg
7" 800 x 480 for PB610 applications or visualization of AC500 V3 web server CP6407 1SAP540710R0001 1.000
07
10.4" 800 x 600 for PB610 applications or visualization of AC500 V3 web server CP6410 1SAP541010R0001 2.000
15" 1024 x 768 for PB610 applications or visualization of AC500 V3 web server CP6415 1SAP541510R0001 3.300

— — —
CP6407 CP6410 CP6415
