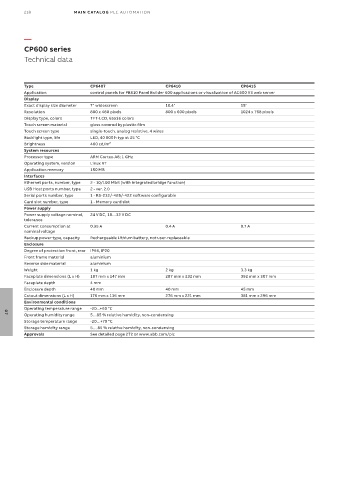

CP600 series
Technical data

Type CP6407 CP6410 CP6415
Application control panels for PB610 Panel Builder 600 applications or visualization of AC500 V3 web server
Display
Exact display size diameter 7" widescreen 10.4" 15"
Resolution 800 x 480 pixels 800 x 600 pixels 1024 x 768 pixels
Display type, colors TFT-LCD, 65536 colors
Touch screen material glass covered by plastic film
Touch screen type single-touch, analog resistive, 4 wires
Backlight type, life LED, 40 000 h typ at 25 °C
Brightness 400 cd/m²
System resources
Processor type ARM Cortex-A8; 1 GHz
Operating system, version Linux RT
Application memory 150 MB
Interfaces
Ethernet ports, number, type 2 - 10/100 Mbit (with integrated bridge function)
USB Host ports number, type 2 - ver. 2.0
Serial ports number, type 1 - RS-232/-485/-422 software configurable
Card slot number, type 1 - Memory card slot
Power supply
Power supply voltage nominal, 24 V DC, 18…32 V DC
tolerance
Current consumption at 0.35 A 0.4 A 0.7 A
nominal voltage
Backup power type, capacity Rechargeable Lithium battery, not user-replaceable
Enclosure
Degree of protection front, rear IP66, IP20
Front frame material aluminium
Reverse side material aluminium
Weight 1 kg 2 kg 3.3 kg
Faceplate dimensions (L x H) 187 mm x 147 mm 287 mm x 232 mm 392 mm x 307 mm
Faceplate depth 4 mm
Enclosure depth 40 mm 40 mm 45 mm
Cutout dimensions (L x H) 176 mm x 136 mm 276 mm x 221 mm 381 mm x 296 mm
Environmental conditions
Operating temperature range -20...+60 °C
Operating humidity range 5…85 % relative humidity, non-condensing
07
Storage temperature range -20…+70 °C
Storage humidity range 5… 85 % relative humidity, non-condensing
Approvals See detailed page 272 or www.abb.com/plc
