CP600 -ECO, CP600 AND CP600 -PRO – CONTROL PANELS 219

—

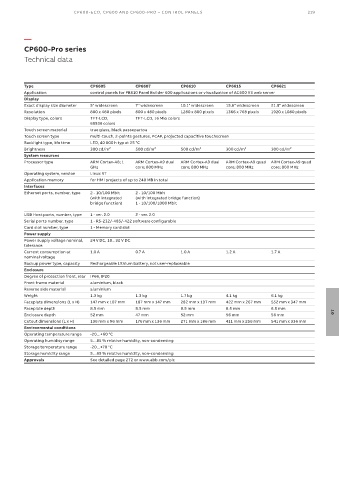

CP600-Pro series
Technical data

Type CP6605 CP6607 CP6610 CP6615 CP6621
Application control panels for PB610 Panel Builder 600 applications or visualization of AC500 V3 web server
Display
Exact display size diameter 5" widescreen 7" widescreen 10.1" widescreen 15.6" widescreen 21.5" widescreen
Resolution 800 x 480 pixels 800 x 480 pixels 1280 x 800 pixels 1366 x 768 pixels 1920 x 1080 pixels
Display type, colors TFT-LCD, TFT-LCD, 16 Mio colors
65536 colors
Touch screen material true glass, black passepartou
Touch screen type multi-touch, 2-points gestures, PCAP, projected capacitive touchscreen
Backlight type, life time LED, 40 000 h typ at 25 °C
Brightness 300 cd/m² 500 cd/m² 500 cd/m² 300 cd/m² 300 cd/m²
System resources
Processor type ARM Cortex-A8; 1 ARM Cortex-A9 dual ARM Cortex-A9 dual ARM Cortex-A9 quad ARM Cortex-A9 quad
GHz core; 800 MHz core; 800 MHz core; 800 MHz core; 800 MHz
Operating system, version Linux RT
Application memory for HMI projects of up to 240 MB in total
Interfaces
Ethernet ports, number, type 2 - 10/100 Mbit 2 - 10/100 Mbit
(with integrated (with integrated bridge function)
bridge function) 1 - 10/100/1000 Mbit
USB Host ports, number, type 1 - ver. 2.0 2 - ver. 2.0
Serial ports number, type 1 - RS-232/-485/-422 software configurable
Card slot number, type 1 - Memory card slot
Power supply
Power supply voltage nominal, 24 V DC, 18...32 V DC
tolerance
Current consumption at 1.0 A 0.7 A 1.0 A 1.2 A 1.7 A
nominal voltage
Backup power type, capacity Rechargeable Lithium battery, not user-replaceable
Enclosure
Degree of protection front, rear IP66, IP20
Front frame material aluminium, black
Reverse side material aluminium
Weight 1.3 kg 1.3 kg 1.7 kg 4.1 kg 6.1 kg
Faceplate dimensions (L x H) 147 mm x 107 mm 187 mm x 147 mm 282 mm x 197 mm 422 mm x 267 mm 552 mm x 347 mm
Faceplate depth 8.5 mm 8.5 mm 8.5 mm 8.5 mm 8.5 mm
Enclosure depth 52 mm 47 mm 52 mm 56 mm 56 mm 07
Cutout dimensions (L x H) 136 mm x 96 mm 176 mm x 136 mm 271 mm x 186 mm 411 mm x 256 mm 541 mm x 336 mm
Environmental conditions
Operating temperature range -20…+60 °C
Operating humidity range 5…85 % relative humidity, non-condensing
Storage temperature range -20…+70 °C
Storage humidity range 5…85 % relative humidity, non-condensing
Approvals See detailed page 272 or www.abb.com/plc
