CP600 -ECO, CP600 AND CP600 -PRO – CONTROL PANELS 217

—

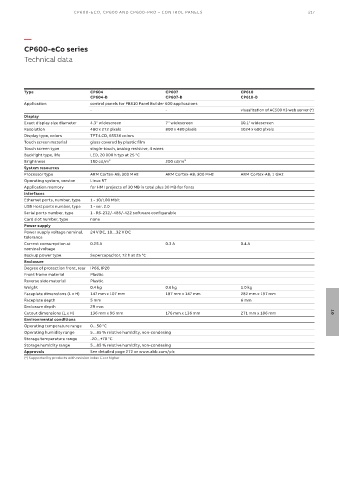

CP600-eCo series
Technical data

Type CP604 CP607 CP610
CP604-B CP607-B CP610-B
Application control panels for PB610 Panel Builder 600 applications
- - visualization of AC500 V3 web server (*)
Display
Exact display size diameter 4.3" widescreen 7" widescreen 10.1" widescreen
Resolution 480 x 272 pixels 800 x 480 pixels 1024 x 600 pixels
Display type, colors TFT-LCD, 65536 colors
Touch screen material glass covered by plastic film
Touch screen type single-touch, analog resistive, 4 wires
Backlight type, life LED, 20 000 h typ at 25 °C
Brightness 150 cd/m² 200 cd/m²
System resources
Processor type ARM Cortex-A8; 300 MHz ARM Cortex-A8; 300 MHz ARM Cortex-A8; 1 GHz
Operating system, version Linux RT
Application memory for HMI projects of 30 MB in total plus 30 MB for fonts
Interfaces
Ethernet ports, number, type 1 - 10/100 Mbit
USB Host ports number, type 1 - ver. 2.0
Serial ports number, type 1 - RS-232/-485/-422 software configurable
Card slot number, type none
Power supply
Power supply voltage nominal, 24 V DC, 18…32 V DC
tolerance
Current consumption at 0.25 A 0.3 A 0.4 A
nominal voltage
Backup power type Supercapacitor, 72 h at 25 °C
Enclosure
Degree of protection front, rear IP66, IP20
Front frame material Plastic
Reverse side material Plastic
Weight 0.4 kg 0.6 kg 1.0 kg
Faceplate dimensions (L x H) 147 mm x 107 mm 187 mm x 147 mm 282 mm x 197 mm
Faceplate depth 5 mm 6 mm
Enclosure depth 29 mm
Cutout dimensions (L x H) 136 mm x 96 mm 176 mm x 136 mm 271 mm x 186 mm 07
Environmental conditions
Operating temperature range 0…50 °C
Operating humidity range 5…85 % relative humidity, non-condesing
Storage temperature range -20…+70 °C
Storage humidity range 5…85 % relative humidity, non-condesing
Approvals See detailed page 272 or www.abb.com/plc
(*) Supported by products with revision index C1 or higher
