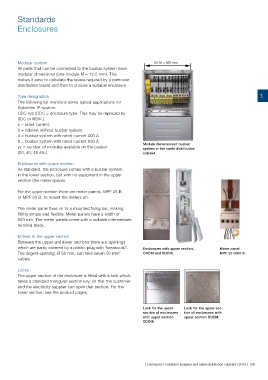

Standards

Enclosures

Modular system 60 M = 850 mm
All parts that can be connected to the busbar system have
modular dimensions (one module M = 12.5 mm). This
makes it easy to calculate the space required by a particular
distribution board and then to choose a suitable enclosure.

Type designation 3
The following list mentions some typical applications for
Kabeldon IP-system:
CDC xyz (CDC = enclosure type. This may be replaced by
SDC or KSIK.)
x = rated current:
0 = cabinet without busbar system
4 = busbar system with rated current 400 A
6 = busbar system with rated current 630 A
yz = number of modules available on the busbar Module dimensioned busbar
system in the cable distribution
(20, 40, 48 etc.) cabinet.

Enclosures with upper section
As standard, the enclosure comes with a busbar system
in the lower section, but with no equipment in the upper
section (the meter space).

For the upper section there are meter panels, MPF 25 B
or MPF 63 B, to mount the meters on.

The meter panel fixes on to a mounted fixing bar, making
fitting simple and flexible. Meter panels have a width of
220 mm. The meter panels come with a suitable intermediate
terminal block.

Entries to the upper section
Between the upper and lower sections there are openings
which are partly covered by a plastic plug with “breakouts”. Enclosures with upper section, Meter panel
The largest opening, Ø 50 mm, can take seven 50 mm CDCM and SDCM. MPF 25 B/63 B.
2
cables.

Locks
The upper section of the enclosure is fitted with a lock which
takes a standard triangular-section key, so that the customer
and the electricity supplier can open that section. For the
lower section, see the product pages.

Lock for the upper Lock for the upper sec-
section of enclosures tion of enclosures with
with upper section upper section SDCM.
CDCM.

| Enclosures | Kabeldon fusegear and cable distribution cabinets | 2016 | 3/6
