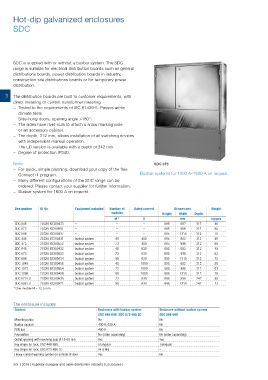

Hot-dip galvanized enclosures

SDC

SDC is supplied with or without a busbar system. The SDC
range is suitable for electrical distribution boards such as general
distributions boards, power distribution boards in industry,
construction site distributions boards or for temporary power
distribution.

3 The distribution boards are built to customer requirements, with
direct metering or current transformer metering.
− Tested to the requirements of IEC 61439-5. Passes arctic
climate tests.
− Side-hung doors, opening angle >180°.
− The sides have rivet-nuts to attach a snow marking pole
or an accessory cabinet.
− The depth, 312 mm, allows installation of all switching devices
with independent manual operation.
− The LD version is available with a depth of 242 mm.
− Degree of protection IP34D.

Note: SDC 073
− For quick, simple planning, download your copy of the free
Connect IT program. Busbar systems for 1000 A–1600 A on request.
− Many different configurations of the SDC range can be
ordered. Please contact your supplier for further information.
− Busbar system for 1600 A on request.

Designation ID No. Equipment included Number of Rated current Dimensions Weight
modules Height Width Depth
M * A mm kg/pcs
SDC 048 2CGX0 63300433 – – – 895 682 312 46
SDC 073 2CGX0 63300551 – – – 895 996 312 58
SDC 098 2CGX0 63300437 – – – 895 1310 312 70
SDC 448 2CGX0 63300431 busbar system 48 400 895 682 312 48
SDC 473 2CGX0 63300552 busbar system 73 400 895 996 312 60
SDC 648 2CGX0 63300432 busbar system 48 630 895 682 312 49
SDC 673 2CGX0 63300553 busbar system 73 630 895 996 312 62
SDC 698 2CGX0 63300434 busbar system 98 630 895 1310 312 75
SDC 1048 2CGX0 63300458 busbar system 48 1000 895 682 312 50
SDC 1073 2CGX0 63300554 busbar system 73 1000 895 996 312 63
SDC 1098 2CGX0 63300459 busbar system 98 1000 895 1310 312 76
SDC 673 LD 2CGX0 63300635 busbar system 73 630 895 996 242 59
SDC 698 LD 2CGX0 63300571 busbar system 98 630 895 1310 242 73
* One module M = 12.5 mm.

The enclosure includes
Content Enclosure with busbar system Enclosure without busbar system
SDC 448-698 SDC 673-698 LD SDC 048-098
Mounting plate No No
Busbar system 400 A, 630 A No
PEN bar 400 A No
Foundation No (order separately) No (order separately)
Outlet opening with revolving seal Ø 15-60 mm Yes Yes
Key shape for lock, SDC 448-698 Triangular Triangular
Key shape for lock, SDC 673-698 LD SE (EBR) –
Heavy-current warning symbol on outside of door Yes No
3/9 | 2016 | Kabeldon fusegear and cable distribution cabinets | Enclosures |
