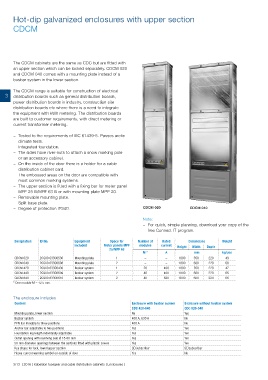

Hot-dip galvanized enclosures with upper section

CDCM

The CDCM cabinets are the same as CDC but are fitted with
an upper section which can be locked separately. CDCM 020
and CDCM 040 comes with a mounting plate instead of a
busbar system in the lower section.

The CDCM range is suitable for construction of electrical
3 distribution boards such as general distribution boards,
power distribution boards in industry, construction site
distribution boards etc where there is a need to integrate
the equipment with kWh metering. The distribution boards
are built to customer requirements, with direct metering or
current transformer metering.

− Tested to the requirements of IEC 61439-5. Passes arctic
climate tests.
− Integrated foundation.
− The sides have river-nuts to attach a snow marking pole
or an accessory cabinet.
− On the inside of the door there is a holder for a cable
distribution cabinet card.
− The embossed areas on the door are compatible with
most common marking systems.
− The upper section is fitted with a fixing bar for meter panel
MPF 25 B/MPF 63 B or with mounting plate MPP 20.
− Removable mounting plate.
− Split base plate.
− Degree of protection IP34D. CDCM 020 CDCM 040

Note:
− For quick, simple planning, download your copy of the
free Connect IT program.

Designation ID No. Equipment Space for Number of Rated Dimensions Weight
included Meter panels MPF modules current Height Width Depth
25/MPF 63
M * A mm kg/pcs
CDCM 020 2CGX0 63300530 Mounting plate 1 – – 1800 350 220 49
CDCM 040 2CGX0 63300608 Mounting plate 2 – – 1800 600 220 68
CDCM 420 2CGX0 63300430 Busbar system 1 20 400 1800 350 220 47
CDCM 440 2CGX0 63300609 Busbar system 2 40 400 1800 600 220 65
CDCM 640 2CGX0 63300610 Busbar system 2 40 630 1800 600 220 66
* One module M = 12.5 mm.

The enclosure includes
Content Enclosure with busbar system Enclosure without busbar system
CDC 420-640 CDC 020-040
Mounting plate, lower section No Yes
Busbar system 400 A, 630 A No
PEN bar movable to three positions 400 A No
Anchor bar adjustable to two positions Yes Yes
Foundation leg length individually adjustable Yes Yes
Outlet opening with revolving seal Ø 15-60 mm Yes Yes
50 mm diameter openings between the sections fitted with plastic covers Yes Yes
Key shape for lock, lower/upper section SE/subscriber SE/subscriber
Heavy-current warning symbol on outside of door Yes No

3/13 | 2016 | Kabeldon fusegear and cable distribution cabinets | Enclosures |
