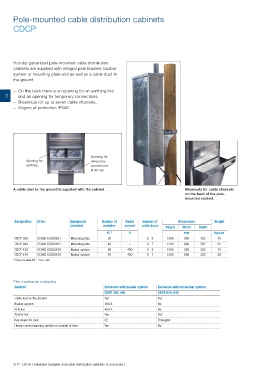

Pole-mounted cable distribution cabinets

CDCP

Hot-dip galvanized pole-mounted cable distribution
cabinets are supplied with integral pole bracket, busbar
system or mounting plate and as well as a cable duct to
the ground.

− On the back there is an opening for an earthing line
3 and an opening for temporary connections.
− Breakouts for up to seven cable channels.
− Degree of protection IP34D.

Opening for
Opening for temporary
earthing connections
Ø 48 mm

A cable duct to the ground is supplied with the cabinet. Breakouts for cable channels
on the back of the pole-
mounted cabinet.

Designation ID No. Equipment Number of Rated Number of Dimensions Weight
included modules current cable ducts
Height Width Depth
M * A mm kg/pcs
CDCP 020 2CGX0 63300621 Mounting plate 20 – 0 - 3 1200 350 382 45
CDCP 040 2CGX0 63300622 Mounting plate 40 – 0 - 7 1200 600 382 61
CDCP 420 2CGX0 63300428 Busbar system 20 400 0 - 3 1200 350 382 43
CDCP 440 2CGX0 63300429 Busbar system 40 400 0 - 7 1200 600 382 58
* One module M = 12.5 mm.

The enclosure includes
Content Enclosure with busbar system Enclosure without busbar system
CDCP 420, 440 CDCP 020, 040
Cable duct to the ground Yes Yes
Busbar system 400 A No
PEN bar 400 A No
Anchor bar Yes Yes
Key shape for lock SE Triangular
Heavy-current warning symbol on outside of door Yes No
