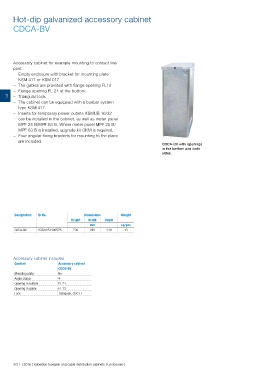

Hot-dip galvanized accessory cabinet

CDCA-BV

Accessory cabinet for example mounting to contact line
post.
− Empty enclosure with bracket for mounting plate
KSM 417 or KSM 017
− The gables are provided with flange opening FL13
− Flange opening FL 21 at the bottom.
3 − Triangular lock.
− The cabinet can be equipped with a busbar system
type KSM 417.
− Inserts for temporary power outlets KSMUB 16/32
can be installed in the cabinet, as well as meter panel
MPF 25 B/MPF 63 B. Where meter panel MPF 25 B/
MPF 63 B is installed, upgrade kit CKM is required.
− Four angular fixing brackets for mounting to the place
are included.
CDCA-BV with openings
in the bottom and both
sides.

Designation ID No. Dimensions Weight
Height Width Depth
mm kg/pcs
CDCA-BV 2CGX0 63300576 730 280 218 13

Accessory cabinet includes
Content Accessory cabinet
CDCA-BV
Mounting plate No
Angle clamp 4
Opening in bottem FL 21
Opening in gable FL 13
Lock Triangular, CDC-LT

3/21 | 2016 | Kabeldon fusegear and cable distribution cabinets | Enclosures |
