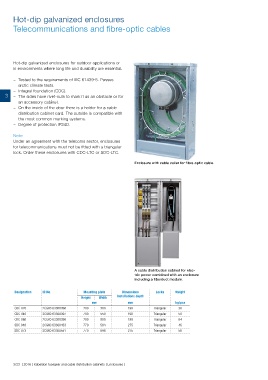

Hot-dip galvanized enclosures

Telecommunications and fibre-optic cables

Hot-dip galvanized enclosures for outdoor applications or
in environments where long life and durability are essential.

− Tested to the requirements of IEC 61439-5. Passes
arctic climate tests.
− Integral foundation (CDC).
3 − The sides have rivet-nuts to mark it as an obstacle or for
an accessory cabinet.
− On the inside of the door there is a holder for a cable
distribution cabinet card. The outside is compatible with
the most common marking systems.
− Degree of protection IP34D.

Note:
Under an agreement with the telecoms sector, enclosures
for telecommunications must not be fitted with a triangular
lock. Order these enclosures with CDC-LTC or SDC-LTC.
Enclosure with cable coiler for fibre-optic cable.

A cable distribution cabinet for elec-
tric power combined with an enclosure
including a fiberduct module.

Designation ID No. Mounting plate Dimensions Locks Weight
Height Width Installations depth
mm mm kg/pcs
CDC 020 2CGX0 63300396 700 300 198 Triangular 36
CDC 040 2CGX0 63300397 700 550 198 Triangular 50
CDC 060 2CGX0 63300398 700 800 198 Triangular 64
SDC 048 2CGX0 63300433 770 584 275 Triangular 46
SDC 073 2CGX0 63300551 770 898 275 Triangular 58

3/23 | 2016 | Kabeldon fusegear and cable distribution cabinets | Enclosures |
