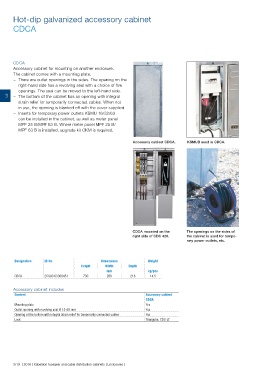

Hot-dip galvanized accessory cabinet

CDCA

CDCA
Accessory cabinet for mounting on another enclosure.
The cabinet comes with a mounting plate.
− There are outlet openings in the sides. The opening on the
right-hand side has a revolving seal with a choice of five
openings. The seal can be moved to the left-hand side.
3 − The bottom of the cabinet has an opening with integral
strain relief for temporarily connected cables. When not
in use, the opening is blanked off with the cover supplied.
− Inserts for temporary power outlets KSMU 16/32/63
can be installed in the cabinet, as well as meter panel
MPF 25 B/MPF 63 B. Where meter panel MPF 25 B/
MPF 63 B is installed, upgrade kit CKM is required.

Accessory cabinet CDCA. KSMUB used in CDCA.

CDCA mounted on the The openings on the sides of
right side of CDC 420. the cabinet is used for tempo-
rary power outlets, etc.

Designation ID No. Dimensions Weight
Height Width Depth
mm kg/pcs
CDCA 2CGX0 63300451 730 280 218 14.5

Accessory cabinet includes
Content Accessory cabinet
CDCA
Mounting plate Yes
Outlet opening with revolving seal Ø 15-60 mm Yes
Opening at the bottom with integral strain relief for temporarily connected cables Yes
Lock Triangular, CDC-LT

3/19 | 2016 | Kabeldon fusegear and cable distribution cabinets | Enclosures |
