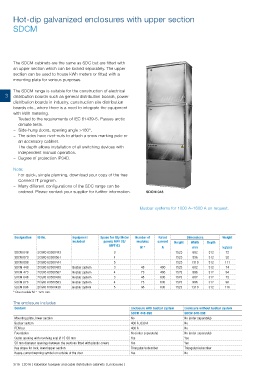

Hot-dip galvanized enclosures with upper section

SDCM

The SDCM cabinets are the same as SDC but are fitted with
an upper section which can be locked separately. The upper
section can be used to house kWh meters or fitted with a
mounting plate for various purposes.

The SDCM range is suitable for the construction of electrical
3 distribution boards such as general distribution boards, power
distribution boards in industry, construction site distribution
boards etc., where there is a need to integrate the equipment
with kWh metering.
− Tested to the requirements of IEC 61439-5. Passes arctic
climate tests.
− Side-hung doors, opening angle >180°.
− The sides have rivet-nuts to attach a snow marking pole or
an accessory cabinet.
− The depth allows installation of all switching devices with
independent manual operation.
− Degree of protection IP34D.

Note:
− For quick, simple planning, download your copy of the free
Connect IT program.
− Many different configurations of the SDC range can be
ordered. Please contact your supplier for further information. SDCM 048

Busbar systems for 1000 A–1600 A on request.

Designation ID No. Equipment Space for Qty Meter Number of Rated Dimensions Weight
included panels MPF 25/ modules current Height Width Depth
MPF 63
M * A mm kg/pcs
SDCM 048 2CGX0 63300443 – 3 – – 1523 682 312 72
SDCM 073 2CGX0 63300561 – 4 – – 1523 996 312 92
SDCM 098 2CGX0 63300444 – 5 – – 1523 1310 312 111
SDCM 448 2CGX0 63300435 Busbar system 3 48 400 1523 682 312 74
SDCM 473 2CGX0 63300562 Busbar system 4 73 400 1523 996 312 94
SDCM 648 2CGX0 63300436 Busbar system 3 48 630 1523 682 312 75
SDCM 673 2CGX0 63300563 Busbar system 4 73 630 1523 996 312 96
SDCM 698 2CGX0 63300438 Busbar system 5 98 630 1523 1310 312 116
* One module M = 12.5 mm.

The enclosure includes
Content Enclosure with busbar system Enclosure without busbar system
SDCM 448-698 SDCM 048-098
Mounting plate, lower section No No (order separately)
Busbar system 400 A, 630 A No
PEN bar 400 A No
Foundation No (order separately) No (order separately)
Outlet opening with revolving seal Ø 15-60 mm Yes Yes
50 mm diameter openings between the sections fitted with plastic covers Yes Yes
Key shape for lock, lower/upper section Triangular/subscriber Triangular/subscriber
Heavy-current warning symbol on outside of the door Yes No
