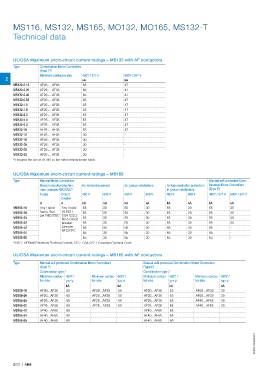

Page 30 - Motor_protection_and_control_Manual_motor_starters_ contactors

MS116, MS132, MS165, MO132, MO165, MS132-T

Technical data

UL/CSA Maximum short-circuit current ratings – MS132 with AF contactors
Type Combination Motor Controllers
(Type F) 1)
Minimum contactor size 480Y / 277 V 600Y / 347 V
2 kA kA
MS132-0.16 AF26 ... AF38 65 47
MS132-0.25 AF26 ... AF38 65 47
MS132-0.40 AF26 ... AF38 65 47
MS132-0.63 AF26 ... AF38 65 47
MS132-1.0 AF26 ... AF38 65 47
MS132-1.6 AF26 ... AF38 65 47
MS132-2.5 AF26 ... AF38 65 47
MS132-4.0 AF26 ... AF38 65 47
MS132-6.3 AF26 ... AF38 65 47
MS132-10 AF26 ... AF38 65 47
MS132-12 AF26 ... AF38 30 -
MS132-16 AF26 ... AF38 30 -
MS132-20 AF26 ... AF38 30 -
MS132-25 AF26 ... AF38 30 -
MS132-32 AF26 ... AF38 30 -
1) Requires the use of S1-M3-xx line-side terminal feeder block.

UL/CSA Maximum short-circuit current ratings – MS165
Type Manual Motor Controllers Manual self-protected Com-
Branch circuit protection, for motor disconnect for group installations for tap conductor protection bination Motor Controllers
max. size per NEC/CEC 1) in group installations (Type E)
Fuses Circuit 480 V 600 V 480 V 600 V 480 V 600 V 480Y / 277 V 600Y / 347 V
breaker
A A kA kA kA kA kA kA kA kA
MS165-16 Any Listed Any Listed 65 30 65 30 65 30 65 30
MS165-20 fuses. Size UL489 / 65 30 65 30 65 30 65 30
per NEC/CEC CSA C22.2
MS165-25 No.5 circuit 65 30 65 30 65 30 65 30
MS165-32 breaker. 65 30 65 30 65 30 65 30
MS165-42 Size per 65 30 65 30 65 30 65 -
MS165-54 NEC/CEC 65 30 65 30 65 30 65 -
MS165-65 65 30 65 30 65 30 65 -
1) NEC: NFPA®70 National Electrical Code®; CEC: CSA C22.1 Canadian Electrical Code.

UL/CSA Maximum short-circuit current ratings – MS165 with AF contactors
Type Manual self-protected Combination Motor Controllers Manual self-protected Combination Motor Controllers
(Type F) (Type F)
Coordination type 1 Coordination type 2
Minimum contac- 480Y / Minimum contac- 600Y / Minimum contac- 480Y / Minimum contac- 600Y /
tor size 277 V tor size 347 V tor size 277 V tor size 347 V
kA kA kA kA
MS165-16 AF09…AF38 65 AF09…AF38 50 AF26…AF38 65 AF09…AF38 30
MS165-20 AF26…AF38 65 AF26…AF38 50 AF26…AF38 65 AF09…AF38 30
MS165-25 AF26…AF38 65 AF26…AF38 50 AF26…AF38 65 AF40…AF65 30
MS165-32 AF26…AF38 65 AF26…AF38 50 AF26…AF38 65 AF40…AF65 30
MS165-42 AF40…AF65 65 AF40…AF65 65
MS165-54 AF40…AF65 65 AF40…AF65 65
MS165-65 AF40…AF65 65 AF40…AF65 65

2CDC131062C0201

2/22 | ABB
