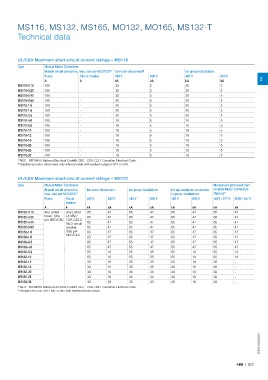

P. 29
MS116, MS132, MS165, MO132, MO165, MS132-T
Technical data
UL/CSA Maximum short-circuit current ratings – MS116
Type Manual Motor Controllers
Branch circuit protection, max. size per NEC/CEC 1) for motor disconnect 2) for group installations
Fuses Circuit breaker 480 V 600 V 480 V 600 V
A A kA kA kA kA 2
MS116-0.16 100 - 30 5 30 5
MS116-0.25 100 - 30 5 30 5
MS116-0.40 100 - 30 5 30 5
MS116-0.63 100 - 30 5 30 5
MS116-1.0 100 - 30 5 30 5
MS116-1.6 100 - 30 5 30 5
MS116-2.5 100 - 30 5 30 5
MS116-4.0 100 - 18 5 18 5
MS116-6.3 100 - 18 5 18 5
MS116-10 100 - 18 5 18 5
MS116-12 100 - 18 5 18 5
MS116-16 100 - 18 5 18 5
MS116-20 100 - 18 5 18 5
MS116-25 100 - 18 5 18 5
MS116-32 100 - 18 5 18 5
1) NEC: NFPA®70 National Electrical Code®; CEC: CSA C22.1 Canadian Electrical Code.
2) Suitable as motor disconnect only when provide with padlock adaptor SA1 or SA3.
UL/CSA Maximum short-circuit current ratings – MS132
Type Manual Motor Controllers Manual self-protected Com-
Branch circuit protection, for motor disconnect for group installations for tap conductor protection bination Motor Controllers
max. size per NEC/CEC 1) in group installations (Type E) 2)
Fuses Circuit 480 V 600 V 480 V 600 V 480 V 600 V 480Y / 277 V 600Y / 347 V
breaker
A A kA kA kA kA kA kA kA kA
MS132-0.16 Any Listed Any Listed 65 47 65 47 65 47 65 47
MS132-0.25 fuses. Size UL489 / 65 47 65 47 65 47 65 47
MS132-0.40 per NEC/CEC CSA C22.2 65 47 65 47 65 47 65 47
No.5 circuit
MS132-0.63 breaker. 65 47 65 47 65 47 65 47
MS132-1.0 Size per 65 47 65 47 65 47 65 47
MS132-1.6 NEC/CEC 65 47 65 47 65 47 65 47
MS132-2.5 65 47 65 47 65 47 65 47
MS132-4.0 65 47 65 47 65 47 65 47
MS132-6.3 65 18 65 35 65 18 65 18
MS132-10 65 18 65 35 65 18 65 18
MS132-12 30 18 35 35 30 18 30 -
MS132-16 30 18 35 35 30 18 30 -
MS132-20 30 18 35 35 30 18 30 -
MS132-25 30 18 35 35 30 18 30 -
MS132-32 30 18 35 35 30 18 30 -
1) NEC: NFPA®70 National Electrical Code®; CEC: CSA C22.1 Canadian Electrical Code.
2) Requires the use of S1-M3-xx line-side terminal feeder block.
2CDC131062C0201
ABB | 2/21
