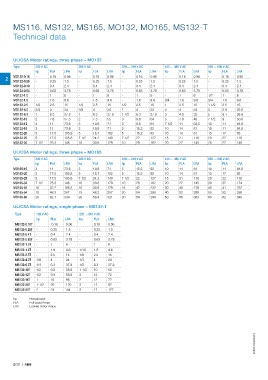

Page 28 - Motor_protection_and_control_Manual_motor_starters_ contactors

MS116, MS132, MS165, MO132, MO165, MS132-T

Technical data

UL/CSA Motor ratings, three phase – MO132
Type 200 V AC 208 V AC 220 … 240 V AC 440 … 480 V AC 550 … 600 V AC
hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA
2 MO132-0.16 - 0.16 0.96 - 0.16 0.96 - 0.16 0.96 - 0.16 0.96 - 0.16 0.96
MO132-0.25 - 0.25 1.5 - 0.25 1.5 - 0.25 1.5 - 0.25 1.5 - 0.25 1.5
MO132-0.40 - 0.4 2.4 - 0.4 2.4 - 0.4 2.4 - 0.4 2.4 - 0.4 2.4
MO132-0.63 - 0.63 3.78 - 0.63 3.78 - 0.63 3.78 - 0.63 3.78 - 0.63 3.78
MO132-1.0 - 1 6 - 1 6 - 1 6 - 1 6 1/2 1 6
MO132-1.6 - 1.6 9.6 - 1.6 9.6 - 1.6 9.6 3/4 1.6 9.6 3/4 1.6 9.6
MO132-2.5 1/2 2.5 15 1/2 2.5 15 1/2 2.5 15 1 2.5 15 1 1/2 2.5 15
MO132-4.0 3/4 4 24 3/4 4 24 1 4 24 2 4 24 3 3.9 25.6
MO132-6.3 1 6.3 37.8 1 6.3 37.8 1 1/2 6.3 37.8 3 4.8 32 5 6.1 36.8
MO132-10 2 7.8 57.5 2 7.5 55 3 9.6 64 5 7.6 46 7 1/2 9 50.8
MO132-12 3 11 73.6 3 10.6 71 3 9.6 64 7 1/2 11 63.5 10 11 64.8
MO132-16 3 11 73.6 3 10.6 71 5 15.2 92 10 14 81 10 11 64.8
MO132-20 5 17.5 105.8 5 16.7 102 5 15.2 92 10 14 81 15 17 93
MO132-25 5 17.5 105.8 7 1/2 24.2 140 7 1/2 22 127 15 21 116 20 22 116
MO132-32 7 1/2 25.3 146 10 30.8 179 10 28 162 20 27 145 25 27 146

UL/CSA Motor ratings, three phase – MO165
Type 200 V AC 208 V AC 220 … 240 V AC 440 … 480 V AC 550 … 600 V AC
hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA
MO165-16 3 11 73.6 3 10.6 71 5 15.2 92 10 14 81 10 11 64.8
MO165-20 5 17.5 105.8 5 16.7 102 5 15.2 92 10 14 81 15 17 93
MO165-25 5 17.5 105.8 7 1/2 24.2 140 7 1/2 22 127 15 21 116 20 22 116
MO165-32 7 1/2 25.3 146 10 30.8 179 10 28 162 20 27 145 30 32 174
MO165-42 10 32.2 186.3 10 30.8 179 15 42 232 30 40 218 40 41 232
MO165-54 15 48.3 267 15 46.2 257 20 54 290 40 52 290 50 52 290
MO165-65 20 62.1 334 20 59.4 321 20 54 290 50 65 363 60 62 348
UL/CSA Motor ratings, single phase – MS132-T

Type 120 V AC 220 ... 240 V AC
hp FLA LRA hp FLA LRA
MS132-0.16T - 0.16 0.96 - 0.16 0.96
MS132-0.25T - 0.25 1.5 - 0.25 1.5
MS132-0.4T - 0.4 2.4 - 0.4 2.4
MS132-0.63T - 0.63 3.78 - 0.63 3.78
MS132-1.0T - 1 6 - 1 6
MS132-1.6T - 1.6 9.6 1/10 1.6 9.6
MS132-2.5T - 2.5 15 1/6 2.5 15
MS132-4.0T 1/8 4 24 1/3 4 24
MS132-6.3T 1/4 6.3 37.8 1/2 6.3 37.8
MS132-10T 1/2 9.8 58.8 1-1/2 10 60
MS132-12T 1/2 9.8 58.8 2 12 72
MS132-16T 1 16 96 2 12 72
MS132-20T 1-1/2 20 120 3 17 92
MS132-25T 2 24 144 3 17 127
hp Horsepower
FLA Full Load Amps
LRA Locked Rotor Amps
