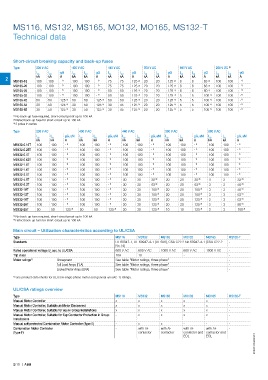

P. 26
MS116, MS132, MS165, MO132, MO165, MS132-T
Technical data
Short-circuit breaking capacity and back-up fuses
Type 230 V AC 400 V AC 440 V AC 500 V AC 690 V AC 250 V DC 3)
I I CU gG I CS I CU gG I CS I CU gG I CS I CU gG I CS I CU gG I CS I CU gG
CS
2 MO165-16 kA kA A - 1) kA kA A - 1) kA kA A 2) kA kA A 125 2) kA kA A 63 2) kA kA A - 1)
20
8
100
8
100
20
125
100
100
100
75
75
100
MO165-20 100 100 - 1) 100 100 - 1) 75 75 125 2) 20 20 125 2) 8 8 63 2) 100 100 - 1)
MO165-25 100 100 - 1) 100 100 - 1) 50 50 125 2) 20 20 125 2) 8 8 80 2) 100 100 - 1)
MO165-32 100 100 - 1) 100 100 - 1) 50 50 125 2) 20 20 125 2) 5 5 100 2) 100 100 - 1)
MO165-42 50 50 125 2) 50 50 125 2) 50 50 125 2) 20 20 125 2) 5 5 100 2) 100 100 - 1)
MO165-54 30 50 125 2) 30 50 125 2) 30 45 125 2) 20 20 125 2) 5 5 100 2) 100 100 - 1)
MO165-65 30 50 125 2) 30 50 125 2) 30 45 125 2) 20 20 125 2) 5 5 100 2) 100 100 - 1)
1) No back-up fuse required, short-circuit proof up to 100 kA
2) Rated back-up fuse for short-circuit up to 100 kA
3 poles in series
3)
Type 230 V AC 400 V AC 440 V AC 500 V AC 690 V AC
I I CU gG, aM I CS I CU gG, aM I CS I CU gG, aM I CS I CU gG, aM I CS I CU gG, aM
CS
kA kA A kA kA A kA kA A kA kA A kA kA A
MS132-0.16T 100 100 - 1) 100 100 - 1) 100 100 - 1) 100 100 - 1) 100 100 - 1)
MS132-0.25T 100 100 - 1) 100 100 - 1) 100 100 - 1) 100 100 - 1) 100 100 - 1)
MS132-0.4T 100 100 - 1) 100 100 - 1) 100 100 - 1) 100 100 - 1) 100 100 - 1)
MS132-0.63T 100 100 - 1) 100 100 - 1) 100 100 - 1) 100 100 - 1) 100 100 - 1)
MS132-1.0T 100 100 - 1) 100 100 - 1) 100 100 - 1) 100 100 - 1) 100 100 - 1)
MS132-1.6T 100 100 - 1) 100 100 - 1) 100 100 - 1) 100 100 - 1) 100 100 - 1)
MS132-2.5T 100 100 - 1) 100 100 - 1) 100 100 - 1) 100 100 - 1) 100 100 - 1)
MS132-4.0T 100 100 - 1) 100 100 - 1) 30 30 35 2) 20 20 35 2) 3 3 32 2)
MS132-6.3T 100 100 - 1) 100 100 - 1) 30 30 63 2) 20 20 63 2) 3 3 50 2)
MS132-10T 100 100 - 1) 100 100 - 1) 30 30 100 2) 20 20 100 2) 3 3 50 2)
MS132-12T 100 100 - 1) 100 100 - 1) 30 30 100 2) 20 20 100 2) 3 3 63 2)
MS132-16T 100 100 - 1) 100 100 - 1) 30 30 125 2) 20 20 125 2) 3 3 63 2)
MS132-20T 100 100 - 1) 100 100 - 1) 30 30 125 2) 20 20 125 2) 3 3 80 2)
MS132-25T 50 50 125 2) 50 50 125 2) 30 30 125 2) 10 10 125 2) 3 3 100 2)
1) No back-up fuse required, short-circuit proof up to 100 kA
2) Rated back-up fuse for short-circuit up to 100 kA
Main circuit – Utilization characteristics according to UL/CSA
Type MS116 MS132 MS165 MO132 MO165 MS132-T
Standards UL 60947-1, UL 60947-4-1 (UL 508), CSA C22.2 No.60947-4-1 (CSA C22.2 -
No.14)
Rated operational voltage U acc. to UL/CSA 600 V AC 600 V AC 1000 V AC 600 V AC 1000 V AC -
e
Trip class 10A 10 - -
Motor ratings 1) Horsepower See table "Motor ratings, three phase" -
Full Load Amps (FLA) See table "Motor ratings, three phase" -
Locked Rotor Amps (LRA) See table "Motor ratings, three phase" -
See product data sheets for UL/CSA single phase motor and general use (AC-1) ratings.
1)
UL/CSA ratings overview
Type MS116 MS132 MS165 MO132 MO165 MS132-T
Manual Motor Controller x x x x x -
Manual Motor Controller, Suitable as Motor Disconnect x x x x x -
Manual Motor Controller, Suitable for use in Group Installations x x x x x -
Manual Motor Controller, Suitable for Tap Conductor Protection in Group - x x x x -
Installations
Manual self-protected Combination Motor Controller (Type E) - x x - - -
Combination Motor Controller - with AF with AF with AF with AF -
(Type F) contactor contactor contactor and contactor and
2CDC131062C0201
EOL EOL
2/18 | ABB
