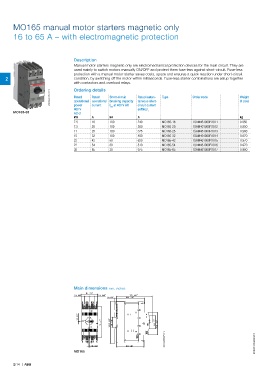

MO165 manual motor starters magnetic only

16 to 65 A – with electromagnetic protection

Description
Manual motor starters magnetic only are electromechanical protection devices for the main circuit. They are
used mainly to switch motors manually ON/OFF and protect them fuse-less against short-circuit. Fuse-less
protection with a manual motor starter saves costs, space and ensures a quick reaction under short-circuit
2 condition, by switching off the motor within milliseconds. Fuse-less starter combinations are setup together
with contactors and overload relays.
Ordering details
2CDC241005V0015 Rated Rated Short-circuit Rated instan- Type Order code Weight
operational operational breaking capacity
taneous short-
(1 pce)
power
CS
setting l
400 V current I at 400 V AC circuit current
MO165-65 AC-3 i
kW A kA A kg
7.5 16 100 240 MO165-16 1SAM461000R1011 0.950
7.5 20 100 300 MO165-20 1SAM461000R1012 0.950
11 25 100 375 MO165-25 1SAM461000R1013 0.960
15 32 100 480 MO165-32 1SAM461000R1014 0.970
22 42 50 630 MO165-42 1SAM461000R1015 0.970
22 54 30 810 MO165-54 1SAM461000R1016 0.970
30 65 30 975 MO165-65 1SAM461000R1017 0.980

Main dimensions mm, inches
55 2.17"
17.5 0.69" 17.5 0.69" 122.1 4.81"
5.5 0.22" 95.5 3.76"

0.07"
1.75
4.17" 5.62" 1.38" 44.9 1.77" 3.01"
106 142.65 35 76.35
2CDC242002F0014

2.05 0.08" 93.5 3.68" 2CDC131062C0201
MO165
