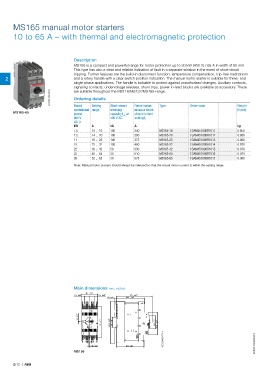

MS165 manual motor starters

10 to 65 A – with thermal and electromagnetic protection

Description
MS165 is a compact and powerful range for motor protection up to 30 kW (400 V) / 65 A in width of 55 mm.
This type has also a clear and reliable indication of fault in a separate window in the event of short-circuit
tripping. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism
2 and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and
single phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts,
signaling contacts, undervoltage releases, shunt trips, power in-feed blocks are available as accessory. These
are suitable throughout the MS116/MS132/MS165-range.
2CDC241004V0015 Ordering details

Rated
Setting
breaking
(1 pce)
taneous short-
operational range Short-circuit Rated instan- Type Order code Weight
MS165-65
power capacity I at circuit current
CS
400 V 400 V AC setting l i
AC-3
kW A kA A kg
7.5 10 ... 16 100 240 MS165-16 1SAM451000R1011 0.950
7.5 14 ... 20 100 300 MS165-20 1SAM451000R1012 0.950
11 18 ... 25 100 375 MS165-25 1SAM451000R1013 0.960
15 23 ... 32 100 480 MS165-32 1SAM451000R1014 0.970
22 30 ... 42 50 630 MS165-42 1SAM451000R1015 0.970
22 40 ... 54 30 810 MS165-54 1SAM451000R1016 0.970
30 52 ... 65 30 975 MS165-65 1SAM451000R1017 0.980
Note: Manual motor starters should always be selected so that the actual motor current is within the setting range.

Main dimensions mm, inches
55 2.17"
17.5 0.69" 17.5 0.69" 122.1 4.81"
5.5 0.22" 95.5 3.76"

0.07"
1.75
4.17" 5.62" 1.38" 44.9 1.77" 3.01"
106 142.65 35 76.35
2CDC242001F0014

2.05 0.08" 93.5 3.68" 2CDC131062C0201
MS165

2/12 | ABB
