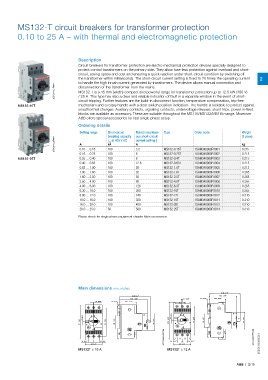

MS132-T circuit breakers for transformer protection

0.10 to 25 A – with thermal and electromagnetic protection

Description
Circuit breakers for transformer protection are electro mechanical protection devices specially designed to
protect control transformers on the primary side. They allow fuse-less protection against overload and short-
circuit, saving space and cost and ensuring a quick reaction under short-circuit condition by switching off
the transformer within milliseconds. The short-circuit current setting is fixed to 20 times the operating current 2
to handle the high inrush current generated by transformers. The device allows manual connection and
2CDC241001F0014 disconnection of the transformer from the mains.
MS132-T is a 45 mm (width) compact and powerful range for transformer protection up to 12.5 kW (400 V)
/ 25 A. This type has also a clear and reliable indication of fault in a separate window in the event of short-
circuit tripping. Further features are the build-in disconnect function, temperature compensation, trip-free
MS132-10T mechanism and a rotary handle with a clear switch position indication. The handle is lockable to protect against
unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, power in-feed
blocks are available as accessory. These are suitable throughout the MS116/MS132/MS165-range. Moreover
ABB offers special accessories for fast single phase setup.
Ordering details
Setting range Short-circuit Rated instantane- Type Order code Weight
(1 pcee)
breaking capacity
ous short-circuit
2CDC241002F0014 A I at 400 V AC current setting l i kg
CS
A
kA
0.10 … 0.16
5
MS132-0.25T
100
0.215
1SAM340000R1002
0.16 … 0.25 100 3.2 MS132-0.16T 1SAM340000R1001 0.215
MS132-25T 0.25 … 0.40 100 8 MS132-0.4T 1SAM340000R1003 0.215
0.40 … 0.63 100 12.6 MS132-0.63T 1SAM340000R1004 0.215
0.63 … 1.00 100 20 MS132-1.0T 1SAM340000R1005 0.215
1.00 … 1.60 100 32 MS132-1.6T 1SAM340000R1006 0.265
1.60 … 2.50 100 50 MS132-2.5T 1SAM340000R1007 0.265
2.50 … 4.00 100 80 MS132-4.0T 1SAM340000R1008 0.265
4.00 … 6.30 100 126 MS132-6.3T 1SAM340000R1009 0.265
6.30 … 10.0 100 200 MS132-10T 1SAM340000R1010 0.265
8.00 … 12.0 100 240 MS132-12T 1SAM340000R1012 0.310
10.0 … 16.0 100 320 MS132-16T 1SAM340000R1011 0.310
16.0 … 20.0 100 400 MS132-20T 1SAM340000R1013 0.310
20.0 … 25.0 50 500 MS132-25T 1SAM340000R1014 0.310
Please check for single phase equipment chapter Main accessories.

Main dimensions mm, inches
81.05 3.19"
81.25 3.2" 72.2 2.84"
72.4 2.85" 1.5 0.06" 5.5 0.22" 43.3 0.22"
1.5 0.06" 5.5 0.22" 43.5 1.71"

0.1"
0.1" 1.7
3.54" 1.7 2.95" 1.38" 1.77" 3.85" 97.8 2.95" 75 1.38" 35 1.77" 45
90 75 35 45"
2CDC242015F0009 2CDC242016F0009

14 0.55" 14 0.55" 14 0.55" 14 0.55"
45 1.77" 45 1.77" 2CDC131062C0201
MS132T ≤ 10 A MS132T ≥ 12 A

ABB | 2/15
