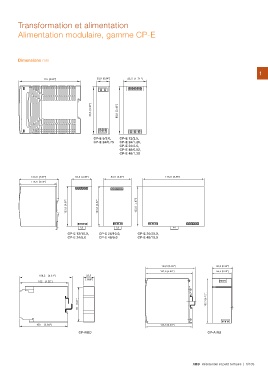

Transformation et alimentation
Alimentation modulaire, gamme CP-E

Dimensions mm 1

115 [4.53“] 23,9 [0.94“] 43,5 [1.71”]

88,5 [3.48“]
88,5 [3.48”]

CP-E 5/3.0, CP-E 12/2.5,
CP-E 24/0.75 CP-E 24/1.25,
CP-E 24/2.5,
CP-E 48/0.62,
CP-E 48/1.25

123,6 [4.87“] 63,2 [2.49“] 83,0 [3.27“] 175,0 [6.89“]
116,6 [4.59“]

123,6 [4.87“]
123,6 [4.87“]
123,6 [4.87“]

CP-E 12/10.0, CP-E 24/10.0, CP-E 24/20.0,
CP-E 24/5.0 CP-E 48/5.0 CP-E 48/10.0

144,5 [5.69”] 60,0 [2.36”]
137,0 [5.39”] 56,5 [2.22”]

109,5 [4.31“] 22,5 
102 [4.02“] [.886“]

78 [3.07“]
130,0 [5.12”]

100 [3.94“] 135,5 [5.33”]

CP-RUD CP-A RU
