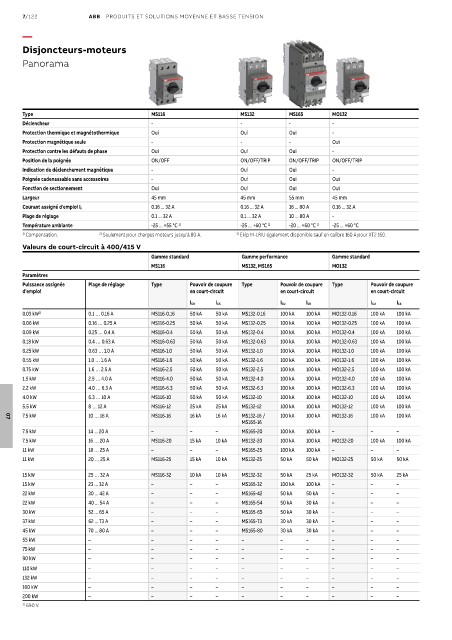

Page 1080 - Les indispensables 2021

7/122 ABB PRODUITS ET SOLUTIONS MOYENNE ET BASSE TENSION

—
Disjoncteurs-moteurs

Panorama

Type MS116 MS132 MS165 MO132 MO165 XT2 160 XT4 250 T4 250 ou 320 T5 400 ou 630
Déclencheur - - - - - MF, MA Ekip M-LIU 3) Ekip I Ekip M-LIU 3) PR221-I Ekip M-LRIU
Protection thermique et magnétothermique Oui Oui Oui - - - Oui - Oui - Oui
Protection magnétique seule - - - Oui Oui Oui - Oui - Oui -
Protection contre les défauts de phase Oui Oui Oui - - - Oui - Oui - Oui
Position de la poignée ON/OFF ON/OFF/TRIP ON/OFF/TRIP ON/OFF/TRIP ON/OFF/TRIP ON/OFF/TRIP ON/OFF/TRIP ON/OFF/TRIP
Indication de déclenchement magnétique - Oui Oui - - - Oui 4) Oui 4) - Oui 4)
Poignée cadenassable sans accessoires - Oui Oui Oui Oui - - - -
Fonction de sectionnement Oui Oui Oui Oui Oui Oui Oui Oui
Largeur 45 mm 45 mm 55 mm 45 mm 55 mm 90 mm 105 mm T4 : 105 mm T5 : 140 mm
Courant assigné d'emploi I e 0.16 ... 32 A 0.16 ... 32 A 16 ... 80 A 0.16 ... 32 A 16 ... 80 A 1 ... 160 A 25 ... 160 A 2) 40 ... 250 A 40 ... 160 A 100 ... 630 A 100 ... 400 A 5)
Plage de réglage 0.1 ... 32 A 0.1 ... 32 A 10 ... 80 A - - - 1 ... 160 A - 16 ... 160 A - 40 ... 400 A
Température ambiante -25 ... +55 °C 1) -25 ... +60 °C 1) -20 ... +60 °C 1) -25 ... +60 °C -25 ... +60 °C -25 ... +70 °C -25 ... +70 °C -25 ... +70 °C
4)
3)
2)
1) Compensation. Seulement pour charges moteurs jusqu'à 80 A. Ekip M-LRIU également disponible sauf en calibre 160 A pour XT2 160. en utilisant les accessoires Ekip TT ou Ekip T&P. Ekip M-LRIU 400A uniquement compatible avec T5 630.
5)
Valeurs de court-circuit à 400/415 V
Gamme standard Gamme performance Gamme standard Gamme performance Gamme boîtiers moulés Gamme boîtiers moulés
MS116 MS132, MS165 MO132 MO132, MO165 Ekip M-LIU et Ekip M-LRIU MF, MA, Ekip I et PR221-I
Paramètres
Puissance assignée Plage de réglage Type Pouvoir de coupure Type Pouvoir de coupure Type Pouvoir de coupure Type Pouvoir de coupure Plage Type Pouvoir de coupure Type Pouvoir de coupure
d'emploi en court-circuit en court-circuit en court-circuit en court-circuit de réglage en court-circuit en court-circuit
I CU I CS I CU I CS I CU I CS I CU I CS I CU = I CS
0.03 kW 1) 0.1 … 0.16 A MS116-0.16 50 kA 50 kA MS132-0.16 100 kA 100 kA MO132-0.16 100 kA 100 kA MO132-0.16 100 kA 100 kA – – – – –
0.06 kW 0.16 … 0.25 A MS116-0.25 50 kA 50 kA MS132-0.25 100 kA 100 kA MO132-0.25 100 kA 100 kA MO132-0.25 100 kA 100 kA – – – – –
0.09 kW 0.25 … 0.4 A MS116-0.4 50 kA 50 kA MS132-0.4 100 kA 100 kA MO132-0.4 100 kA 100 kA MO132-0.4 100 kA 100 kA – – – – –
0.18 kW 0.4 … 0.63 A MS116-0.63 50 kA 50 kA MS132-0.63 100 kA 100 kA MO132-0.63 100 kA 100 kA MO132-0.63 100 kA 100 kA – – – – –
0.25 kW 0.63 … 1.0 A MS116-1.0 50 kA 50 kA MS132-1.0 100 kA 100 kA MO132-1.0 100 kA 100 kA MO132-1.0 100 kA 100 kA – – – XT2 160 MF 1 36 ... 150 kA
0.55 kW 1.0 … 1.6 A MS116-1.6 50 kA 50 kA MS132-1.6 100 kA 100 kA MO132-1.6 100 kA 100 kA MO132-1.6 100 kA 100 kA – – – XT2 160 MF 2 36 ... 150 kA
0.75 kW 1.6 … 2.5 A MS116-2.5 50 kA 50 kA MS132-2.5 100 kA 100 kA MO132-2.5 100 kA 100 kA MO132-2.5 100 kA 100 kA – – – XT2 160 MF 2 36 ... 150 kA
1.5 kW 2.5 … 4.0 A MS116-4.0 50 kA 50 kA MS132-4.0 100 kA 100 kA MO132-4.0 100 kA 100 kA MO132-4.0 100 kA 100 kA – – – XT2 160 MF 4 36 ... 150 kA
2.2 kW 4.0 … 6.3 A MS116-6.3 50 kA 50 kA MS132-6.3 100 kA 100 kA MO132-6.3 100 kA 100 kA MO132-6.3 100 kA 100 kA – – – XT2 160 MF 8.5 36 ... 150 kA
4.0 kW 6.3 … 10 A MS116-10 50 kA 50 kA MS132-10 100 kA 100 kA MO132-10 100 kA 100 kA MO132-10 100 kA 100 kA – – – XT2 160 MF 12.5 36 ... 150 kA
5.5 kW 8 … 12 A MS116-12 25 kA 25 kA MS132-12 100 kA 100 kA MO132-12 100 kA 100 kA MO132-12 100 kA 100 kA 10 ... 25 A XT2 160 Ekip M-LIU 25 36 ... 150 kA XT2 160 MF 12.5 36 ... 150 kA
7.5 kW 10 … 16 A MS116-16 16 kA 16 kA MS132-16 / 100 kA 100 kA MO132-16 100 kA 100 kA MO132-16 / 100 kA 100 kA 10 ... 25 A XT2 160 Ekip M-LIU 25 36 ... 150 kA XT2 160 MA 20 36 ... 150 kA
MS165-16 MO165-16
07
7.5 kW 14 ... 20 A – – – MS165-20 100 kA 100 kA – – – MO165-20 100 kA 100 kA 10 ... 25 A XT2 160 Ekip M-LIU 25 36 ... 150 kA XT2 160 MA 20 36 ... 150 kA
7.5 kW 16 … 20 A MS116-20 15 kA 10 kA MS132-20 100 kA 100 kA MO132-20 100 kA 100 kA MO132-20 100 kA 100 kA 10 ... 25 A XT2 160 Ekip M-LIU 25 36 ... 150 kA XT2 160 MA 20 36 ... 150 kA
11 kW 18 … 25 A – – – MS165-25 100 kA 100 kA – – – – – – 25 ... 63 A XT2 160 Ekip M-LIU 63 36 ... 150 kA XT2 160 MA 32 36 ... 150 kA
11 kW 20 … 25 A MS116-25 15 kA 10 kA MS132-25 50 kA 50 kA MO132-25 50 kA 50 kA MO132-25 / 50 kA / 50 kA / 25 ... 63 A XT2 160 Ekip M-LIU 63 36 ... 150 kA XT2 160 MA 32 36 ... 150 kA
MO165-25 100 kA 100 kA
15 kW 25 … 32 A MS116-32 10 kA 10 kA MS132-32 50 kA 25 kA MO132-32 50 kA 25 kA MO132-32 50 kA 25 kA 25 ... 63 A XT2 160 Ekip M-LIU 63 36 ... 150 kA XT2 160 MA 32 36 ... 150 kA
15 kW 23 ... 32 A – – – MS165-32 100 kA 100 kA – – – MO165-32 100 kA 100 kA 25 ... 63 A XT2 160 Ekip M-LIU 63 36 ... 150 kA XT2 160 MA 32 36 ... 150 kA
22 kW 30 ... 42 A – – – MS165-42 50 kA 50 kA – – – MO165-42 50 kA 50 kA 25 ... 63 A XT2 160 Ekip M-LIU 63 36 ... 150 kA XT2 160 MA 52 36 ... 150 kA
22 kW 40 ... 54 A – – – MS165-54 50 kA 30 kA – – – MO165-54 50 kA 30 kA 25 ... 63 A XT2 160 Ekip M-LIU 63 36 ... 150 kA XT2 160 MA 52 36 ... 150 kA
30 kW 52 ... 65 A – – – MS165-65 50 kA 30 kA – – – MO165-65 50 kA 30 kA 40 ... 100 A XT2 160 Ekip M-LIU 100 36 ... 150 kA XT2 160 MA 80 36 ... 150 kA
37 kW 62 ... 73 A – – – MS165-73 30 kA 30 kA – – – MO165-73 30 kA 30 kA 40 ... 100 A XT2 160 Ekip M-LIU 100 36 ... 150 kA XT2 160 MA 80 36 ... 150 kA
45 kW 70 ... 80 A – – – MS165-80 30 kA 30 kA – – – MO165-80 30 kA 30 kA 40 ... 100 A XT2 160 Ekip M-LIU 100 36 ... 150 kA XT2 160 MA 100 36 ... 150 kA
55 kW – – – – – – – – – – – – – 64 ... 160 A XT2 160 Ekip M-LIU 160 36 ... 150 kA XT2 160 MA 160 36 ... 150 kA
75 kW – – – – – – – – – – – – – 64 ... 160 A XT4 160 Ekip M-LIU 160 36 ... 150 kA XT2 160 MA 160 36 ... 150 kA
90 kW – – – – – – – – – – – – – 80 ... 200 A T4 250 Ekip M-LRIU 200 50 ... 200 kA XT4 250 Ekip I 250 36 ... 150 kA
110 kW – – – – – – – – – – – – – 128 ... 320 A T5 400 Ekip M-LRIU 320 36 ... 200 kA T4 320 PR221-I 320 36 ... 200 kA
132 kW – – – – – – – – – – – – – 160 ... 400 A T5 630 Ekip M-LRIU 400 36 ... 200 kA T5 400 PR221-I 400 36 ... 200 kA
160 kW – – – – – – – – – – – – – 160 ... 400 A T5 630 Ekip M-LRIU 400 36 ... 200 kA T5 400 PR221-I 400 36 ... 200 kA
200 kW – – – – – – – – – – – – – – – – T5 630 PR221-I 630 36 ... 200 kA
1) 690 V.
