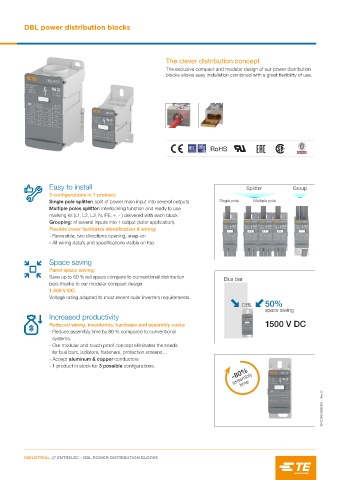

DBL power distribution blocks

The clever distribution concept
The exclusive compact and modular design of our power distribution
blocks allows easy installation combined with a great flexibility of use.

RoHS

Easy to install Splitter Group
3 configurations in 1 product:
Single pole splitter: split of power main input into several outputs Single pole Multiple pole
Multiple poles splitter: interlocking function and ready to use
marking kit (L1, L2, L3, N, PE, +, - ) delivered with each block
Grouping: of several inputs into 1 output (solar application).
Flexible cover facilitates identification & wiring:
L1 L2 L3
- Reversible, two directions opening, snap-on
- All wiring data’s and specifications visible on top.

Space saving
Panel space saving:
Save up to 50 % rail space compare to conventional distribution Bus bar
bars thanks to our modular compact design
1 500 V DC:
Voltage rating adapted to most recent solar inverters requirements.
DBL 50%
space saving
Increased productivity
Reduced wiring, inventories, hardware and assembly costs: 1500 V DC
- Reduce assembly time by 80 % compared to conventional
systems.
- Our modular and touch proof concept eliminates the needs
for bus bars, isolators, fasteners, protection screens…
- Accept aluminum & copper conductors
- 1 product in stock for 3 possible configurations.
-80%
assembly
time
1SNC166009S0201 - Rev. D

INDUSTRIAL /// ENTRELEC - DBL POWER DISTRIBUTION BLOCKS
