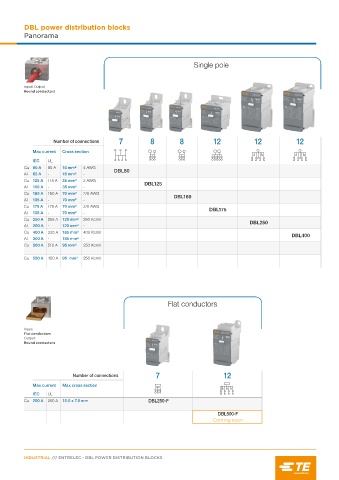

DBL power distribution blocks
Panorama
Single pole
Input/ Output
Round conductors
Number of connections 7 8 8 12 12 12
Max current Cross section
IEC UL
Cu 80 A 80 A 16 mm² 4 AWG DBL80
Al 63 A - 16 mm² -
Cu 125 A 115 A 35 mm² 2 AWG DBL125
Al 100 A - 35 mm² -
Cu 160 A 160 A 70 mm² 2/0 AWG DBL160
Al 135 A - 70 mm² -
Cu 175 A 175 A 70 mm² 2/0 AWG DBL175
Al 135 A - 70 mm² -
Cu 250 A 255 A 120 mm² 250 Kcmil DBL250
Al 200 A - 120 mm² -
Cu 400 A 335 A 185 mm² 400 Kcmil DBL400
Al 300 A - 185 mm² -
Cu 500 A 510 A 95 mm² 250 Kcmil
Cu 550 A 400 A 95 mm² 250 Kcmil
Flat conductors
Input:
Flat conductors
Output:
Round conductors
Number of connections 7 12
Max current Max cross section
IEC UL
Cu 250 A 250 A 15.5 x 7.5 mm DBL250-F
DBL500-F
Coming soon
