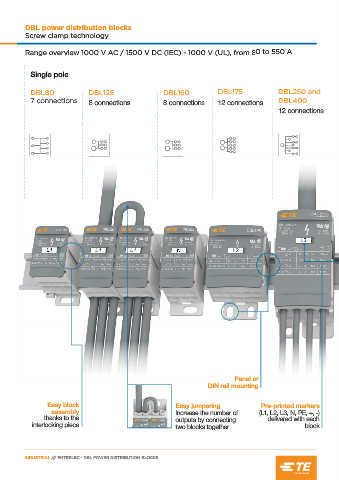

DBL power distribution blocks
          Screw clamp technology


          Range overview 1000 V AC / 1500 V DC (IEC) - 1000 V (UL), from 80 to 550 A


           Single pole

           DBL80                DBL125                    DBL160             DBL175               DBL250 and
           7 connections        8 connections             8 connections      12 connections       DBL400

                                                                                                  12 connections
























































                                                                                   Panel or
                                                                          DIN rail mounting


                 Easy block                                   Easy jumpering                Pre-printed markers
                   assembly                                   Increase the number of        (L1, L2, L3, N, PE, +, -)
                thanks to the                                 outputs by connecting            delivered with each
            interlocking piece                                two blocks together                           block
