P. 3

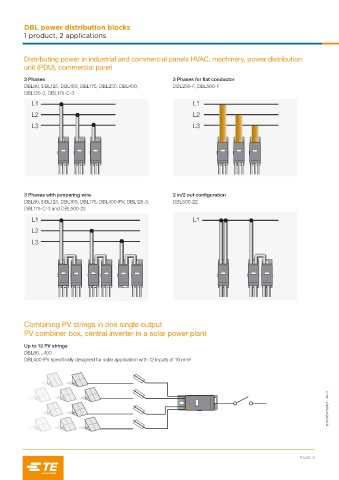

DBL power distribution blocks
1 product, 2 applications
Distributing power in industrial and commercial panels HVAC, machinery, power distribution
unit (PDU), commercial panel
3 Phases 3 Phases for flat conductor
DBL80, DBL125, DBL160, DBL175, DBL250, DBL400, DBL250-F, DBL500-F
DBL125-3, DBL175-C-3
L1 L1
L2 L2
L3 L3
3 Phases with jumpering wire 2 in/2 out configuration
DBL80, DBL125, DBL160, DBL175, DBL400-PV, DBL125-3, DBL500-22
DBL175-C-3 and DBL500-22
L1 L1
L2
L3
Combining PV strings in one single output
PV combiner box, central inverter in a solar power plant
Up to 12 PV strings
DBL80…400
DBL400-PV specifically designed for solar application with 12 inputs of 16 mm².
1SNC166027S0201 - Rev. C
PAGE 3
