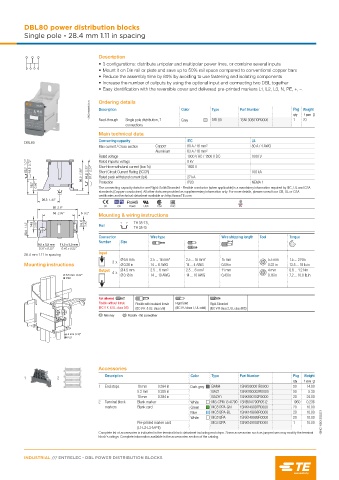

Page 8 - DBL Pover Distribution blocks

DBL80 power distribution blocks
Single pole - 28.4 mm 1.11 in spacing

Description
• 3 configurations: distribute unipolar and multipolar power lines, or combine several inputs
• Mount it on Din rail or plate and save up to 50% rail space compared to conventional copper bars
• Reduce the assembly time by 80% by avoiding to use fastening and isolating components
• Increase the number of outputs by using the optional input and connecting two DBL together
• Easy identification with the reversible cover and delivered pre-printed markers L1, L2, L3, N, PE, +, –.

1SNC166026V0014 Ordering details Color Type Part Number Pkg Weight
Description
1 pce g
qty
Single pole distribution, 7
Feed-through
connections Grey DBL80 1SNL308010R0000 1 70
Main technical data
DBL80 Connecting capacity IEC UL
Max current / Cross section Copper 80 A / 16 mm² 80 A / 4 AWG
Aluminium 63 A / 16 mm²
Rated voltage 1000 V AC / 1500 V DC 1000 V
25.7 1.01" 18.2 0.72" 50.2 1.98" 59.2 2.33" 51.7 2.04" Rated impulse voltage 8 kV 100 kA
Short-time withstand current (Icw 1s)
1920 A
Short Circuit Current Rating (SCCR)
IP20
Protection
16.7 0.66" Rated peak withstand current (Ipk) 27 kA NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA
standards (Copper conductors). All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA
certificates and technical datasheet available on http://www.TE.com
36.3 1.43"
66 2.6" CE CB RoHS USR CSA EAC BV
53 2.09" 5 0.2" Mounting & wiring instructions
28.4 1.12" 14.8 0.58" 10.7 0.42" Rail TH 35-7.5,
TH 35-15
Connection Wire type Wire stripping length Tool Torque
Number Size
9.5 x 5.5 mm 11.5 x 5.5 mm
0.37 x 0.22" 0.45 x 0.22"
Input
28.4 mm 1.11 in spacing
Ø 6.6 mm 2.5 ... 16 mm² 2.5 ... 16 mm² 15 mm 5.5 mm 1.5 ... 2 Nm
3 x
Mounting instructions Ø 0.26 in 14 ... 6 AWG 14 ... 4 AWG 0.59 in 0.22 in 13.5 ... 18 lb.in
Output Ø 4.5 mm 2.5 ... 6 mm² 2.5 ... 6 mm² 11 mm 4 mm 0.8 ... 1.2 Nm
5.5 mm 0.22" 4 x Ø 0.18 in 14 ... 10 AWG 14 ... 10 AWG 0.43 in 0.16 in 7.2 ... 10.8 lb.in
PZ2

Not allowed
Flexible without ferrule Flexible with insulated ferrule Rigid Solid Rigid Stranded
(IEC V-K & UL: class 5/6) (IEC V-K & UL: class 5/6) (IEC V-U class 1, UL solid) (IEC V-R class 2, UL class B/C)
Allen key Posidriv - flat screwdriver

4 mm 0.16"
PZ1

Accessories
1 2 Description Color Type Part Number Pkg Weight
qty 1 pce g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
5.2 mm 0.205 in BAZ1 1SNK900002R0000 50 5.30
10 mm 0.394 in BAZH1 1SNK900102R0000 20 24.00
2 Terminal block Blank marker White MG-CPM 13 41790 1SNB041790R0512 1960 0.236
markers Blank card Green MC512PA-GN 1SNK149997R0000 20 10.00
Blue MC512PA-BL 1SNK149998R0000 20 10.00
White MC512PA 1SNK149999R0000 20 10.00
Pre-printed marker card MC512PA 1SNK149002R0000 1 10.00 1SNC166012S0201
(L1-L2-L3-N-PE)
Complete list of accessories is indicated in the terminal block datasheet including end stops. Some accessories such as jumper bars may modify the terminal
block's ratings: Complete information available in the accessories section of the catalog.
